30 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 30 Series Aluminum Extrusion Profile / HS-8-3030A High-Strength 3030 T-Slot Aluminum Profile, 2.0mm Wall Thickness Silver Industrial Aluminum

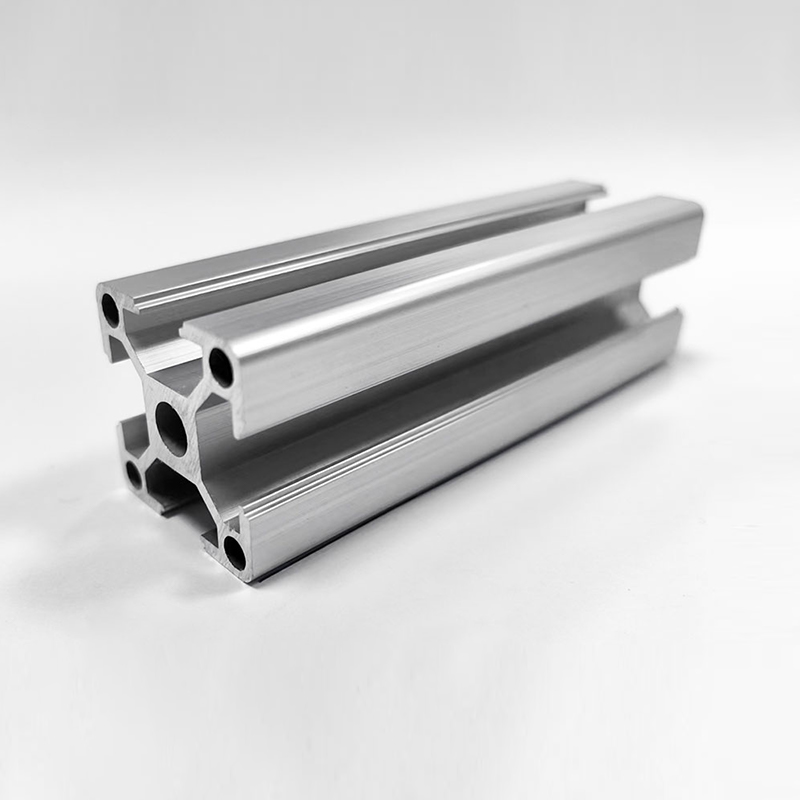

HS-8-3030A High-Strength 3030 T-Slot Aluminum Profile, 2.0mm Wall Thickness Silver Industrial Aluminum

The HS-8-3030A industrial aluminum profile focuses on high-strength performance, with a 30mm*30mm cross-section and 2.0mm thickened wall thickness, a unit weight of 0.85kg/m, which significantly improves the load-bearing capacity and structural stability compared with conventional profiles. Made of 6063-T5 aluminum alloy, it has excellent compression and deformation resistance, suitable for scenarios with high requirements for structural strength. The surface is treated with an anodizing process, with a simple and elegant silver appearance, which is both decorative and practical, and can effectively resist the impact of external factors such as moisture and wear. The profile is equipped with a standard T-slot, 8.2mm in width and 9.2mm in depth, compatible with various European standard connectors, supporting rapid modular splicing without complex welding processes, reducing construction costs. The Φ6.8 hole diameter design ensures precise assembly, with a standard length of 6.02m, and one-stop services such as precise cutting and CNC deep processing can be provided to meet the customization needs of different industries.
Applications: Suitable for the construction of heavy equipment frames, workshop safety guardrails, large material shelves, assembly line supports and supporting frames for industrial automation equipment.

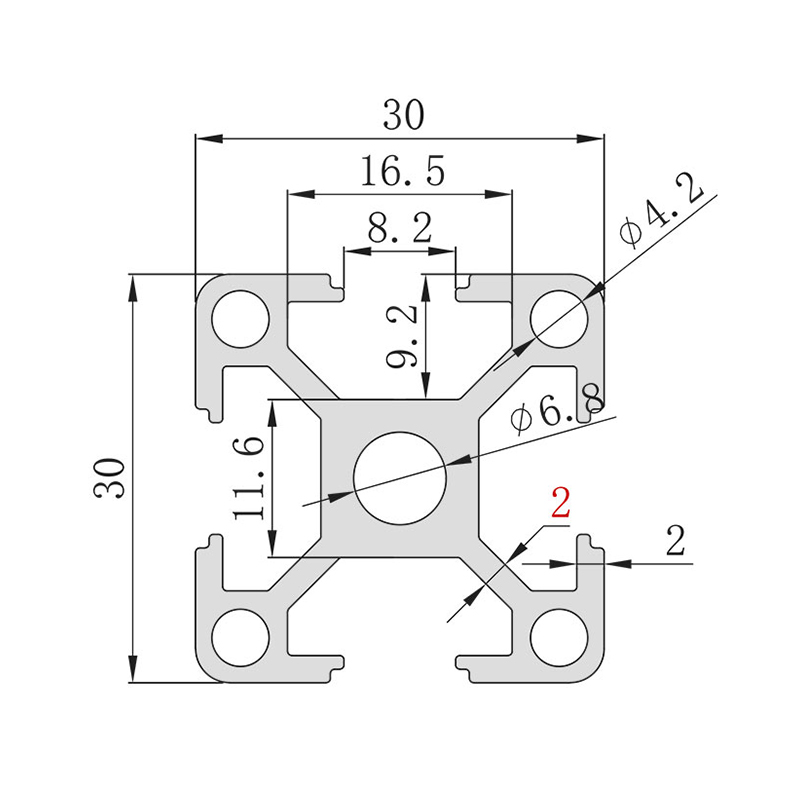

CAD Drawing Download
PREV：HS-8-3030L Standard 3030 T-Slot Aluminum Profile, 1.8mm Wall Thickness Industrial Aluminum Alloy ProfileNEXT：HS-8-3030 Multifunctional 3030 T-Slot Aluminum Profile, Silver & Black Optional, 2.1mm Wall Thickness Industrial Aluminum
  • Specification
Model HS-8-3030A
Cross-section dimensions 30mm*30mm
Unit weight 0.85kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 8.2mm
Slot depth 9.2mm
Hole diameter Φ6.8
Wall thickness 2mm
  • Product Parameters

Model:

OB3030A

Wall Thickness:

2.0mm

Unit Mass:

0.89kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
