30 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 30 Series Aluminum Extrusion Profile / HS-8-3030N1 High Stability 3030 T-Slot Aluminum Profile, 0.95kg/m Unit Weight Silver Industrial Aluminum

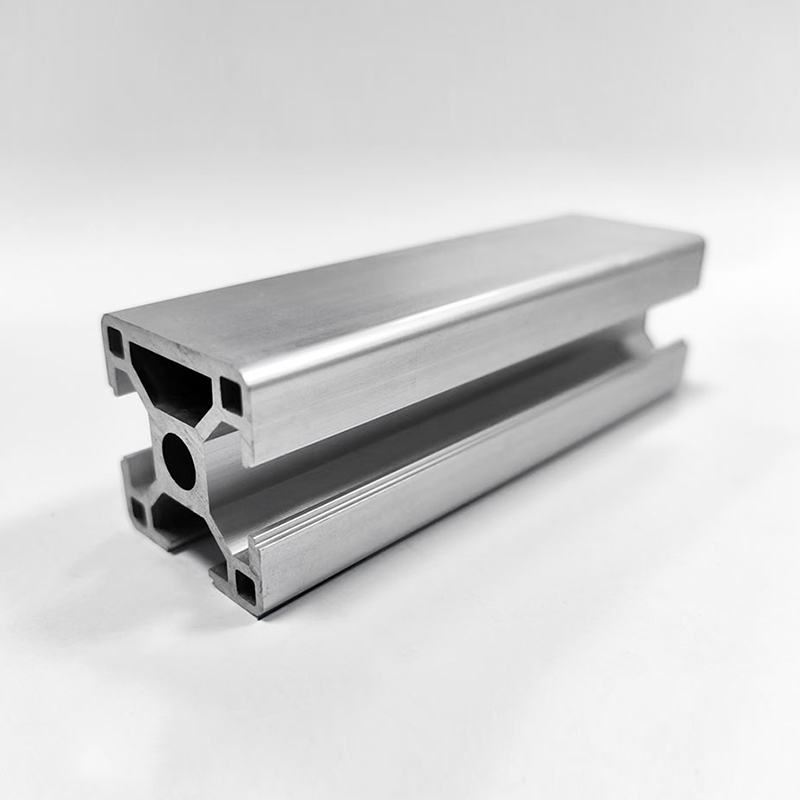

HS-8-3030N1 High Stability 3030 T-Slot Aluminum Profile, 0.95kg/m Unit Weight Silver Industrial Aluminum

The HS-8-3030N1 industrial aluminum profile takes high stability as its core selling point, with a standard 30mm*30mm cross-section and 2.0mm wall thickness design, a unit weight of 0.95kg/m. Compared with profiles of the same wall thickness, it has a more stable structure and better load-bearing performance. Made of 6063-T5 aluminum alloy, it has excellent mechanical strength and toughness, can bear stable loads for a long time, and is not easy to deform. The surface is anodized to present a uniform silver luster, which not only improves the appearance of the product but also effectively resists external corrosion and wear, extending the service life of the product. The profile adopts a standard T-slot, 8.2mm in width and 9.2mm in depth, fully compatible with various European standard aluminum profile accessories, enabling rapid modular assembly without complex welding processes, reducing construction difficulty. The Φ6.8 standard hole diameter ensures precise assembly and uniform force, with a standard length of 6.02m, supporting one-stop deep processing services such as precise cutting, drilling, and tapping, adapting to the personalized needs of various industrial scenarios.
Applications: Widely used in the construction of automation equipment frames, precision instrument brackets, workshop protective fences, material shelves, and supporting frames for industrial assembly lines.

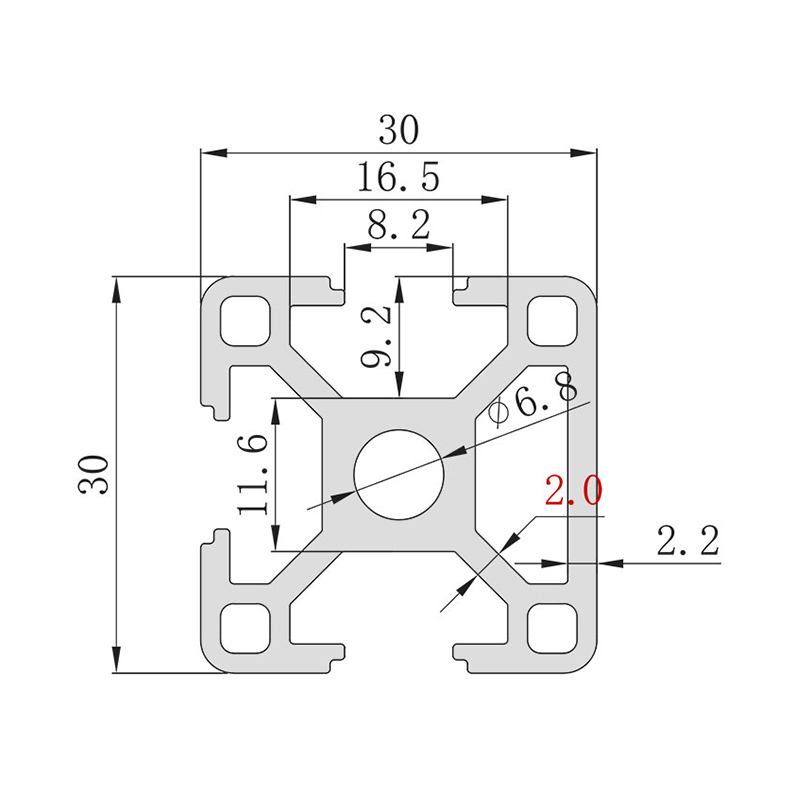

CAD Drawing Download
PREV：HS-8-3030F Thickened Load-Bearing 3030 T-Slot Aluminum Profile, 2.2mm Wall Thickness Silver Industrial Aluminum Alloy ProfileNEXT：HS-8-3030N2 Heavy-Duty 3030 T-Slot Aluminum Profile, 2.2mm Wall Thickness, 1.00kg/m Industrial Aluminum
  • Specification
Model HS-8-3030N1
Cross-section dimensions 30mm*30mm
Unit weight 0.95kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 8.2mm
Slot depth 9.2mm
Hole diameter Φ6.8
Wall thickness 2.0mm
  • Product Parameters

Model:

OB3030N1

Wall Thickness:

2.0mm

Unit Mass:

0.99kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
