HS-10-5050 High-Stability Anodized 5050 series T-Slot Aluminum Extrusion Profile for Heavy-Duty Automation Machinery Bases

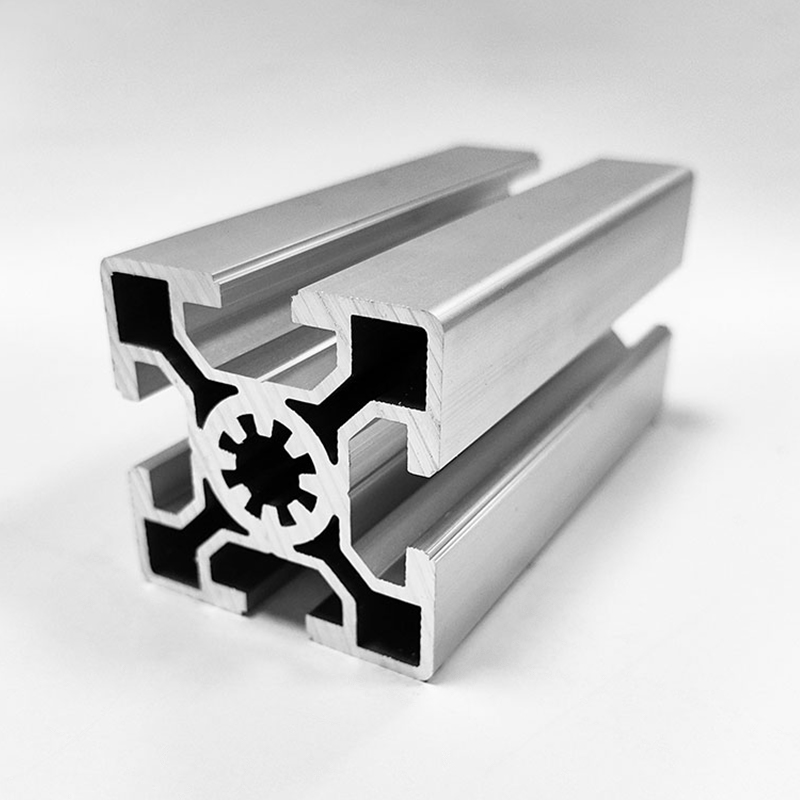

The HS-10-5050 is a high-performance 50x50mm T-slot aluminum extrusion engineered for large-scale industrial frameworks requiring maximum stability. Manufactured from high-purity 6063-T5 alloy, this profile features a substantial unit mass of 2.46kg/m, providing a superior strength-to-weight ratio for heavy-duty applications. Its 1.8mm wall thickness is precision-engineered to balance structural rigidity with cost-efficiency for large-span projects. Designed with a 10.2mm wide T-slot and 12.3mm depth, it supports heavy-duty fasteners (M10), ensuring vibration-resistant and robust connections for dynamic mechanical structures. Ideal for constructing large machinery bases, heavy-duty conveyor system stands, warehouse racking systems, arc welding workstation frames, and industrial mezzanines or stair platforms.

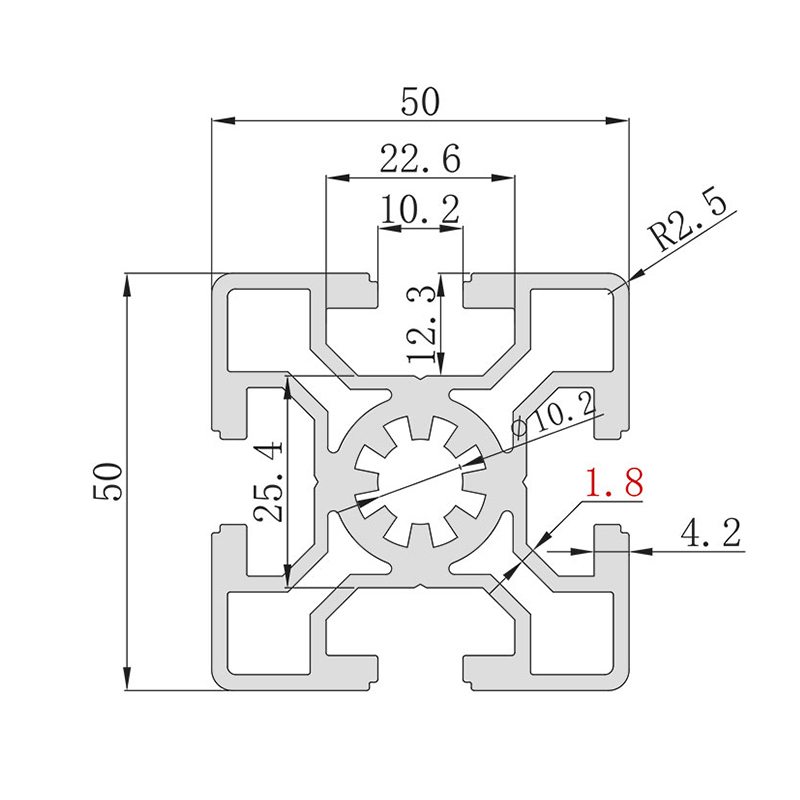

CAD Drawing Download
PREV：HS-8-50100W Thickened Wide T-Slot Industrial Aluminum Profile, 50*100 Silver Heavy-Duty AluminumNEXT：HS-10-5050W Extra-Heavy-Duty 5050 series Industrial Aluminum Extrusion Profile for Arc Welding Workstation Supports
  • Specification
Model Number HS-10-5050
Section Size 50mm * 50mm
Unit Mass 2.46 kg/m
Surface Treatment Anodized
Color Silver
Material 6063-T5 Aluminum Alloy
Standard Length 6.02 m
Slot Type T-Slot
Slot Width 10.2 mm
Slot Depth 12.3 mm
Center Hole Diameter Φ10.2
Wall Thickness 1.8 mm
  • Product Parameters

Model:

OB5050-10

Wall Thickness:

1.8mm

Unit Mass:

2.58kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
