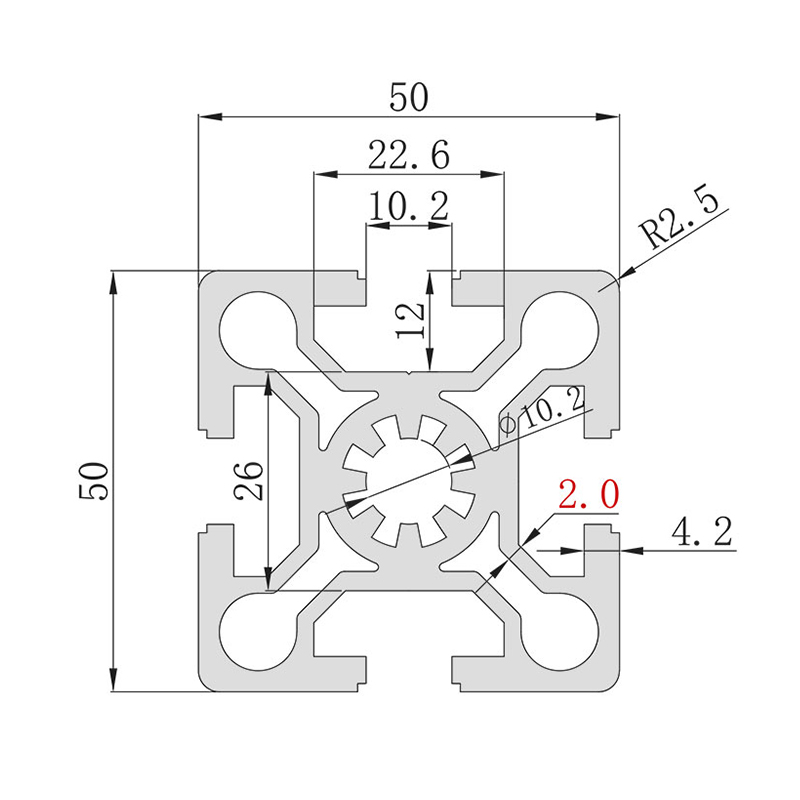

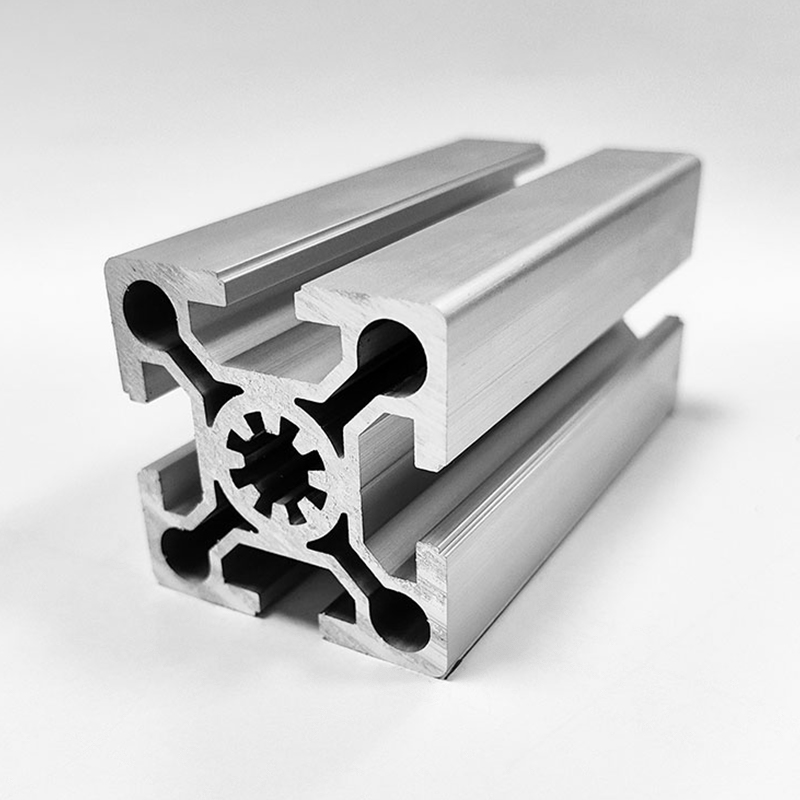

The HS-10-5050W is a premium Extra-Heavy-Duty 50x50mm T-slot aluminum extrusion engineered for structural applications demanding extreme load-bearing capacity. Utilizing high-purity 6063-T5 alloy, this profile features a reinforced 2.0mm wall thickness and a substantial unit mass of 2.86kg/m. It is specifically designed to provide unmatched rigidity and stability for heavy-scale industrial projects. Designed with a 10.2mm wide T-slot and 12mm depth, it supports heavy-duty M10 fasteners for high-torque connections, ensuring zero-deflection performance in high-speed automation environments. Perfectly suited for constructing large machinery bases, arc welding workstation frames, heavy-duty material carts, robot cell safety perimeters, and long-span industrial support structures.
 |
Model Number | HS-10-5050W |
| Section Size | 50mm * 50mm | |
| Unit Mass | 2.86 kg/m | |
| Surface Treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 Aluminum Alloy | |
| Standard Length | 6.02 m | |
| Slot Type | T-Slot | |
| Slot Width | 10.2 mm | |
| Slot Depth | 12 mm | |
| Center Hole Diameter | Φ10.2 | |
| Wall Thickness | 2.0 mm |
Model:
OB5050W-10
Wall Thickness:
2.0mm
Unit Mass:
3.01kg/m
Huishuo Aluminum Industry is professional China HS-10-5050W Extra-Heavy-Duty 5050 series Industrial Aluminum Extrusion Profile for Arc Welding Workstation Supports suppliers and HS-10-5050W Extra-Heavy-Duty 5050 series Industrial Aluminum Extrusion Profile for Arc Welding Workstation Supports company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
