HS-8-4040GLL Ultra-Thin-Walled Square-Slot 4040 Aluminum Profile, 1.2mm Wall Thickness, 8.8mm Wide Slot, Φ10.6 Large Hole Diameter Industrial Aluminum

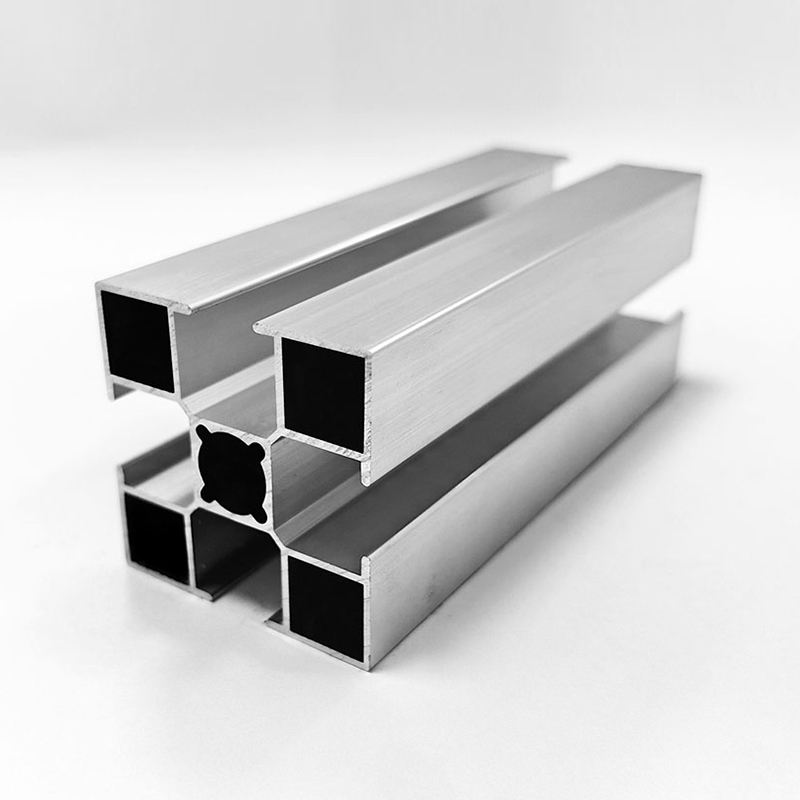

The HS-8-4040GLL industrial aluminum profile focuses on ultra-thin wall, square slot and large hole diameter differentiation. With a standard 40mm*40mm cross-section, 1.2mm ultra-thin wall thickness and a unit weight of 0.73kg/m, it is the lightest model in this series, suitable for light and micro frame scenarios. Made of 6063-T5 aluminum alloy, it is lightweight and has good toughness. Although it is an ultra-thin wall design, it can meet light load requirements and is not easy to deform after special processing. The surface is treated with anodizing, with a smooth silver appearance and strong metallic texture, with basic corrosion resistance and wear resistance, suitable for daily light scenarios. The profile adopts a square slot design (different from the T-slot in the same series), with a slot width of 8.8mm and a slot depth of 13.8mm. The wide slot design improves assembly flexibility; the Φ10.6 large hole diameter is adapted to the corresponding specifications of connectors, with precise assembly. The standard length is 6.02m, supporting deep processing services such as precise cutting and simple drilling. Direct supply from the source factory, affordable price, and adapting to the needs of micro and light frames.
Applications: Suitable for the construction of micro automation equipment frames, small display stands, micro laboratory brackets, small home storage racks and light frames with extremely limited space.

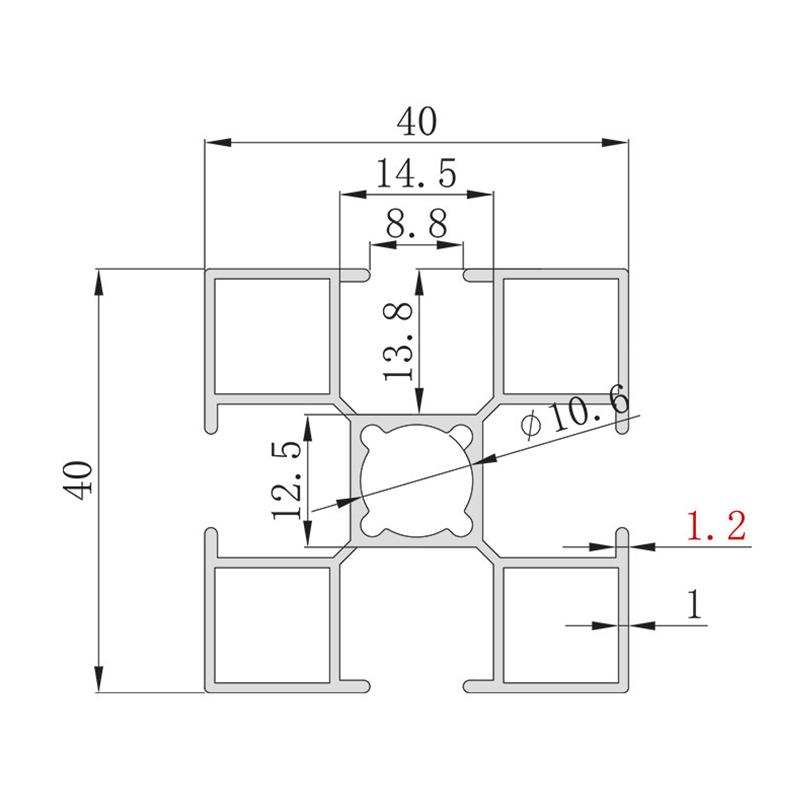

CAD Drawing Download
PREV：HS-8-4040CY Dual-Color Large Hole Diameter T-Slot 4040 Aluminum Profile, Φ12 Extra-Large Hole Diameter, 2.5mm Wall Thickness, 8.2mm Slot Width Industrial AluminumNEXT：HS-8-4040GL Lightweight Square-Slot 4040 Aluminum Profile, 1.8mm Wall Thickness, 8.5mm Wide Slot, Φ10.2 Large Hole Diameter Industrial Aluminum
  • Specification
Model HS-8-4040GLL
Cross-section dimensions 40mm*40mm
Unit weight 0.73kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type Square
Slot width 8.8mm
Slot depth 13.8mm
Hole diameter Φ10.6mm
Wall thickness 1.2mm
  • Product Parameters

Model:

GB4040GLL

Wall Thickness:

1.2mm

Unit Mass:

0.79kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
