40 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 40 Series Aluminum Extrusion Profile / HS-8-4040GL Lightweight Square-Slot 4040 Aluminum Profile, 1.8mm Wall Thickness, 8.5mm Wide Slot, Φ10.2 Large Hole Diameter Industrial Aluminum

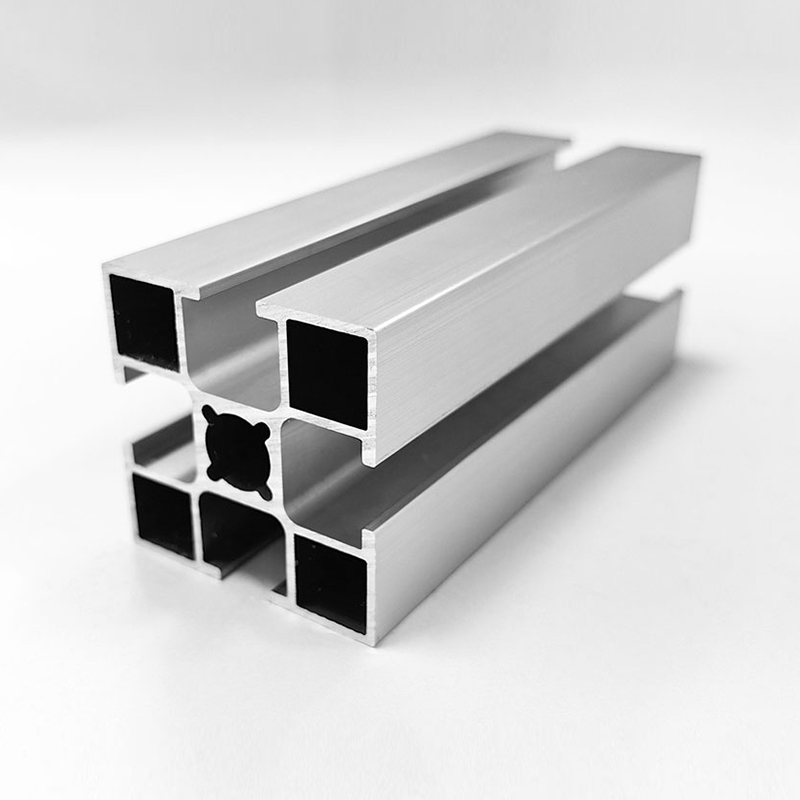

HS-8-4040GL Lightweight Square-Slot 4040 Aluminum Profile, 1.8mm Wall Thickness, 8.5mm Wide Slot, Φ10.2 Large Hole Diameter Industrial Aluminum

The HS-8-4040GL industrial aluminium profile focuses on lightweight square slot differentiation. With a standard 40mm*40mm cross-section, 1.8mm wall thickness and a unit weight of 1.04kg/m, compared with HS-8-4040GLL, the wall thickness is increased, the structure is more solid, suitable for light scenarios and has better stability. Made of high-quality 6063-T5 aluminium alloy, it has good mechanical properties and durability. After anodising treatment, the silver appearance is uniform and delicate, with a strong metallic texture, and has excellent corrosion resistance and wear resistance. The profile adopts a square slot design, with a slot width of 8.5mm (slightly narrower than GLL) and a slot depth of 13.2mm. The square slot structure is firmer in assembly and suitable for various special square connectors; the Φ10.2 large hole diameter design is adapted to large-size bolts, with uniform force, solving the problem of limited adaptation of conventional small hole diameters. The standard length is 6.02m, supporting deep processing services such as precise cutting, drilling and tapping. Direct supply from the source factory with outstanding cost performance, adapting to light scenarios with certain stability requirements.
Applications: Suitable for the construction of light automation equipment frames, simple display stands, light laboratory brackets, home storage racks and small and medium assembly line workbenches.

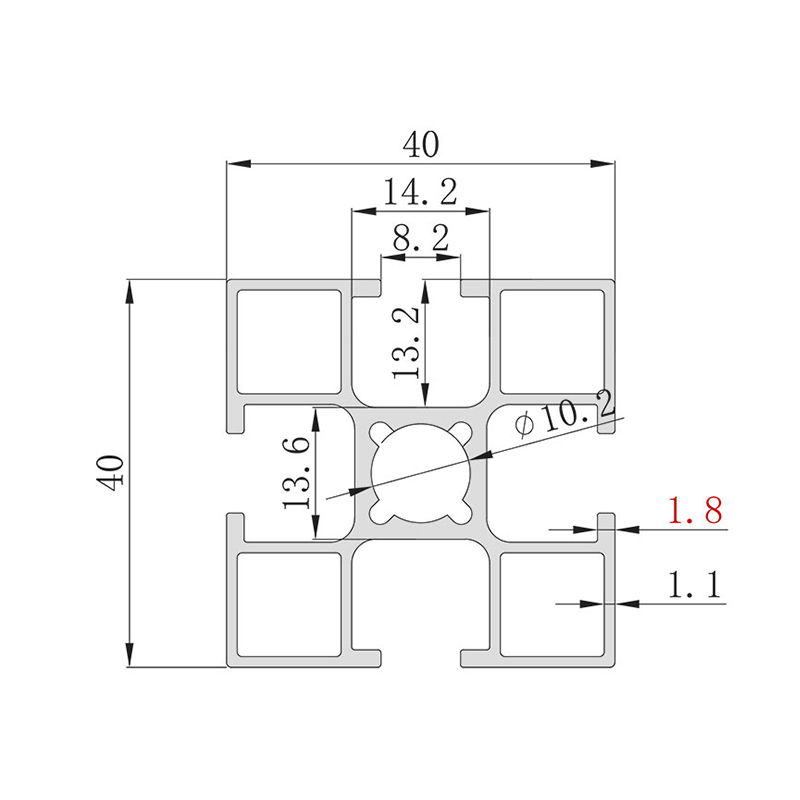

CAD Drawing Download
PREV：HS-8-4040GLL Ultra-Thin-Walled Square-Slot 4040 Aluminum Profile, 1.2mm Wall Thickness, 8.8mm Wide Slot, Φ10.6 Large Hole Diameter Industrial AluminumNEXT：HS-8-4040GH Thickened Square-Slot 4040 Aluminum Profile, 3.5mm Thickened Wall Thickness, 8.4mm Wide Slot, Φ6.8 Standard Hole Diameter Industrial Aluminum
  • Specification
Model HS-8-4040GL
Cross-section dimensions 40mm*40mm
Unit weight 1.04kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type Square
Slot width 8.5mm
Slot depth 13.2mm
Hole diameter Φ10.2mm
Wall thickness 1.8mm
  • Product Parameters

Model:

GB4040GL

Wall Thickness:

1.8mm

Unit Mass:

1.12kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
