40 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 40 Series Aluminum Extrusion Profile / HS-6-4040K Thin-Walled Small-Slot T-Slot 4040 Aluminum Profile, 6.2mm Narrow Slot, 1.5mm Wall Thickness, Silver Industrial Aluminum

HS-6-4040K Thin-Walled Small-Slot T-Slot 4040 Aluminum Profile, 6.2mm Narrow Slot, 1.5mm Wall Thickness, Silver Industrial Aluminum

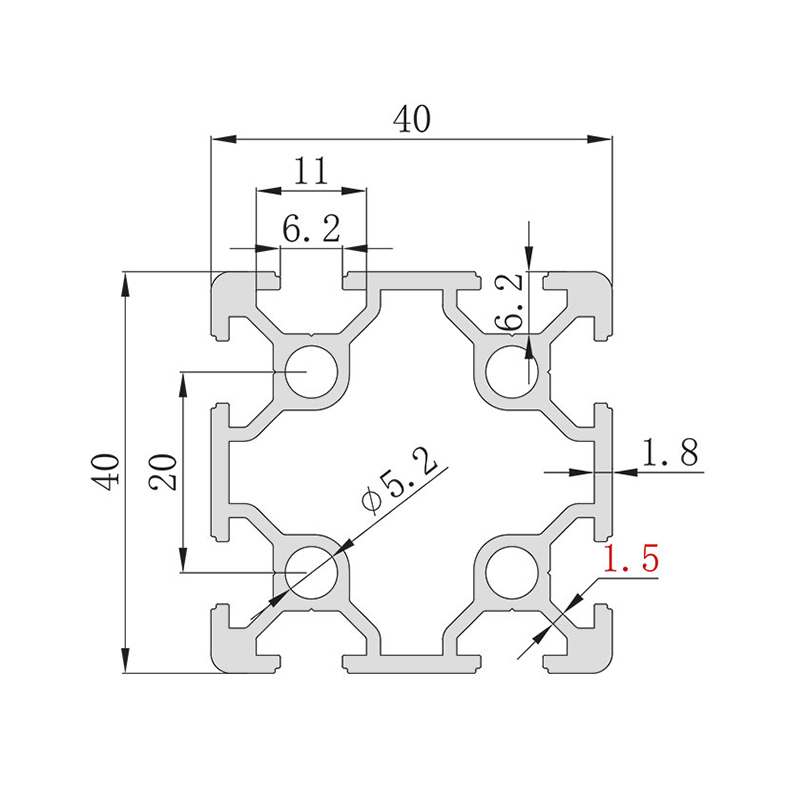

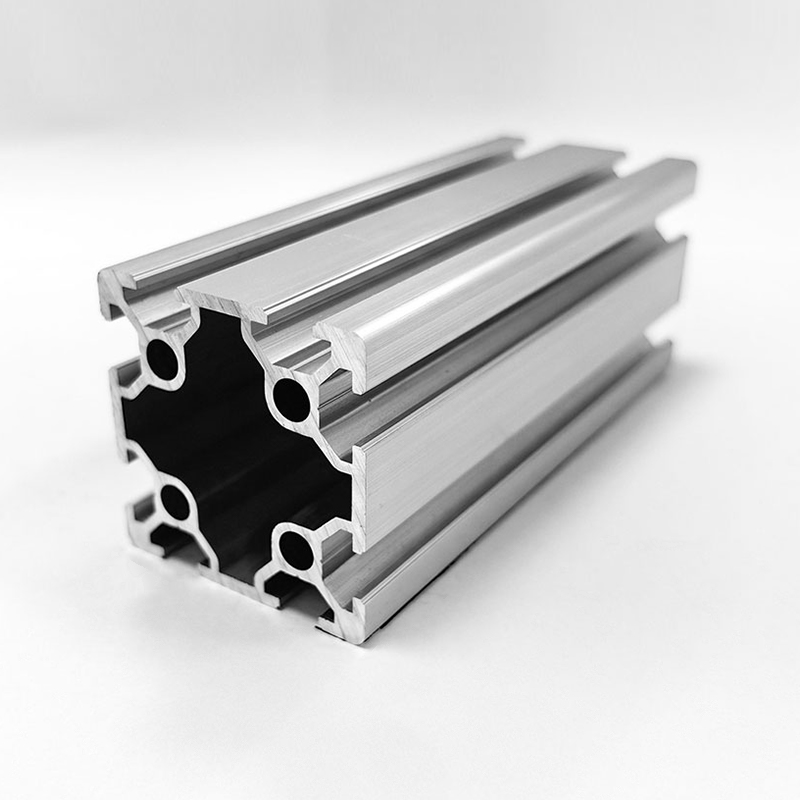

The HS-6-4040K industrial aluminum profile focuses on lightweight and small-slot differentiated design, with a standard 40mm*40mm cross-section, 1.5mm thin-walled design and a unit weight of 1.16kg/m, extremely light in self-weight, suitable for light and small frame scenarios. Made of 6063-T5 aluminum alloy, it is lightweight and has good toughness. Although it is a thin-walled design, it can still ensure basic structural stability and meet light load requirements. The surface is treated with anodizing, with a smooth silver appearance and strong metallic texture, with basic corrosion resistance and wear resistance, suitable for daily light scenarios. The profile adopts a small-size T-slot design, with a slot width of only 6.2mm and a slot depth of 6.2mm (different from the conventional 8.2mm slot width), suitable for small special connectors, small in size, flexible in assembly, and suitable for scenarios with limited space. The Φ5.2 small hole diameter design (different from the conventional Φ6.8) is precisely adapted to small bolts, with precise assembly, a standard length of 6.02m, supporting deep processing services such as precise cutting and simple drilling. Direct supply from the source factory, affordable price, and adapting to the needs of small and light customized frames.
Applications: Suitable for the construction of small automation equipment frames, micro display stands, small laboratory brackets, small home storage racks and light frames with limited space.

CAD Drawing Download
PREV：HS-8-4040R High-Stability T-Slot 4040 Aluminum Profile, 3.0mm Wall Thickness, 12.3mm Slot Depth, Silver Industrial AluminumNEXT：HS-8-4040N1 Precision Load-Bearing T-Slot 4040 Aluminum Profile, 2.3mm Wall Thickness, 8.2mm Slot Width, 13mm Slot Depth Industrial Aluminum
  • Specification
Model HS-6-4040K
Cross-section dimensions 40mm*40mm
Unit weight 1.16kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 6.2mm
Slot depth 6.2mm
Hole diameter Φ5.2mm
Wall thickness 1.5mm
  • Product Parameters

Model:

OB4040K

Wall Thickness:

1.5mm

Unit Mass:

1.21kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
