40 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 40 Series Aluminum Extrusion Profile / HS-8-4040R High-Stability T-Slot 4040 Aluminum Profile, 3.0mm Wall Thickness, 12.3mm Slot Depth, Silver Industrial Aluminum

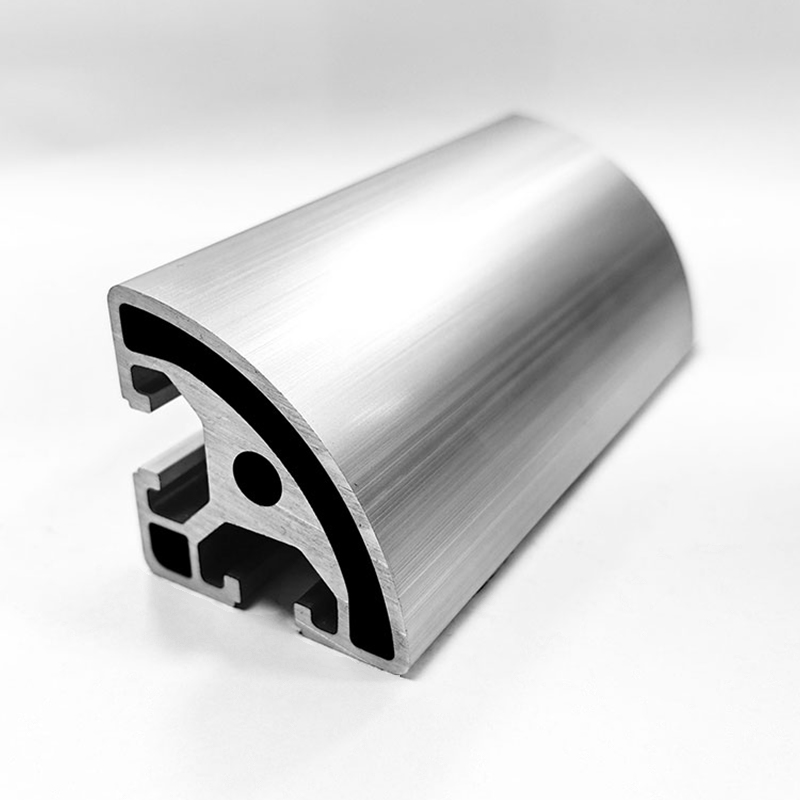

HS-8-4040R High-Stability T-Slot 4040 Aluminum Profile, 3.0mm Wall Thickness, 12.3mm Slot Depth, Silver Industrial Aluminum

The HS-8-4040R industrial aluminium profile takes high stability as its core selling point, with a standard 40mm*40mm cross-section, 3.0mm thickened wall thickness and a unit weight of 1.41kg/m. Among profiles with the same wall thickness, it has lighter self-weight, better load-bearing and outstanding structural stability. Made of 6063-T5 aluminium alloy, it has excellent mechanical strength and toughness, and has passed strict quality inspection, can bear stable loads for a long time, is not easy to deform, and is suitable for scenarios with high requirements for stability. The surface is treated with anodising, with a uniform and delicate silver appearance, strong metallic texture, and excellent corrosion and wear resistance, which can adapt to complex industrial environments. The profile adopts a standard T-slot design, with a slot width of 8.2mm and a slot depth of 12.3mm, compatible with various European standard connectors, supporting welding-free modular rapid assembly, and convenient and efficient construction. The Φ6.8 standard hole diameter ensures precise assembly and uniform force, with a standard length of 6.02m, supporting deep processing services such as precise cutting, drilling and tapping. The source factory can customise according to customer needs, adapting to various medium and heavy scenarios.
Applications: Widely used in the construction of precision automation equipment frames, heavy material shelves, heavy laboratory brackets, workshop protective fences and industrial assembly line frames.

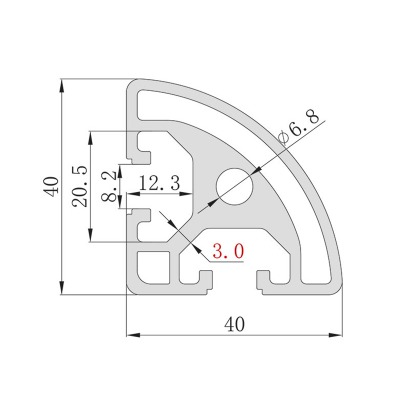

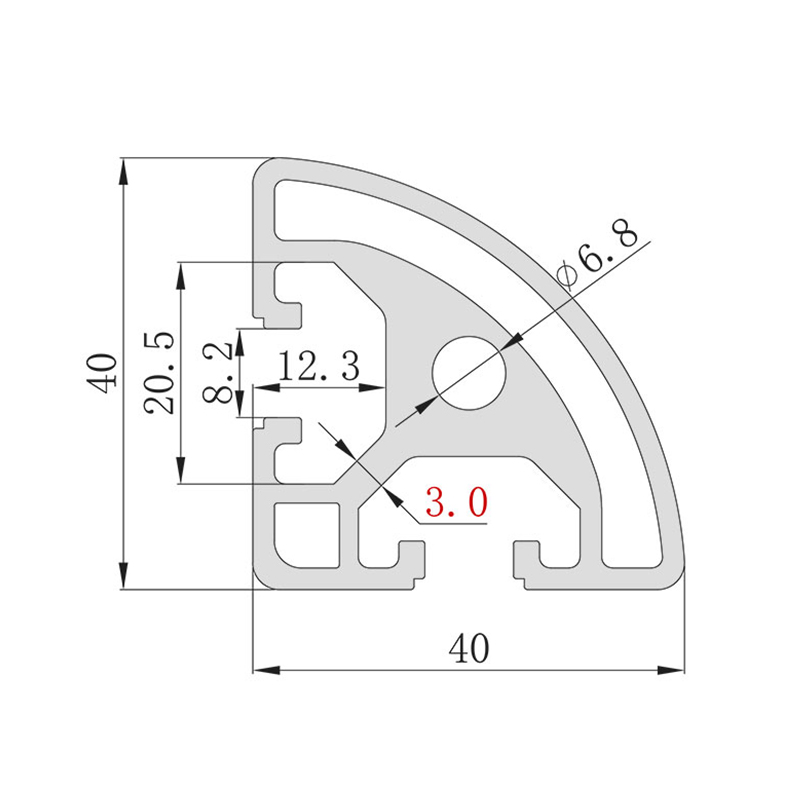

CAD Drawing Download
PREV：HS-8-4040FW Thickened Deep-Slot T-Slot 4040 Aluminum Profile, 3.0mm Wall Thickness, Dual-Color, 14mm Deep Slot Industrial AluminumNEXT：HS-6-4040K Thin-Walled Small-Slot T-Slot 4040 Aluminum Profile, 6.2mm Narrow Slot, 1.5mm Wall Thickness, Silver Industrial Aluminum
  • Specification
Model HS-8-4040R
Cross-section dimensions 40mm*40mm
Unit weight 1.41kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 8.2mm
Slot depth 12.3mm
Hole diameter Φ6.8
Wall thickness 3.0mm
  • Product Parameters

Model:

OB4040R

Wall Thickness:

3.0mm

Unit Mass:

1.48kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
