30 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 30 Series Aluminum Extrusion Profile / HS-8-3090 30*90 T-Slot Aluminum Profile, 8.2mm Slot Width, 2.2mm Wall Thickness Silver Industrial Aluminum

HS-8-3090 30*90 T-Slot Aluminum Profile, 8.2mm Slot Width, 2.2mm Wall Thickness Silver Industrial Aluminum

The HS-8-3090 industrial aluminum profile adopts a large 30mm*90mm cross-sectional design, with a unit weight of 2.36kg/m, stable structure and strong load-bearing capacity, specially designed for heavy frame scenarios. Made of high-quality 6063-T5 aluminum alloy, it has excellent compression and deformation resistance after strict processing, can bear heavy loads for a long time, and has extremely strong stability. The surface is treated with anodizing, with a simple and elegant silver appearance and strong metallic texture, and also has excellent corrosion resistance and wear resistance, which can adapt to complex industrial environments. The profile adopts a standard T-slot design, with a slot width of 8.2mm and a slot depth of 9.2mm, fully compatible with various European standard aluminum profile accessories, enabling welding-free and modular rapid assembly, greatly improving construction efficiency. The 2.2mm thickened wall thickness combined with Φ6.8 standard hole diameter ensures uniform force and precise assembly, with a standard length of 6.02m, supporting one-stop services such as precise cutting, CNC deep processing, frame design and assembly. Direct supply from the source factory, reliable quality.
Applications：Suitable for the construction of heavy automation equipment frames, large material shelves, heavy workshop protective fences, assembly line load-bearing supports and large industrial frames.

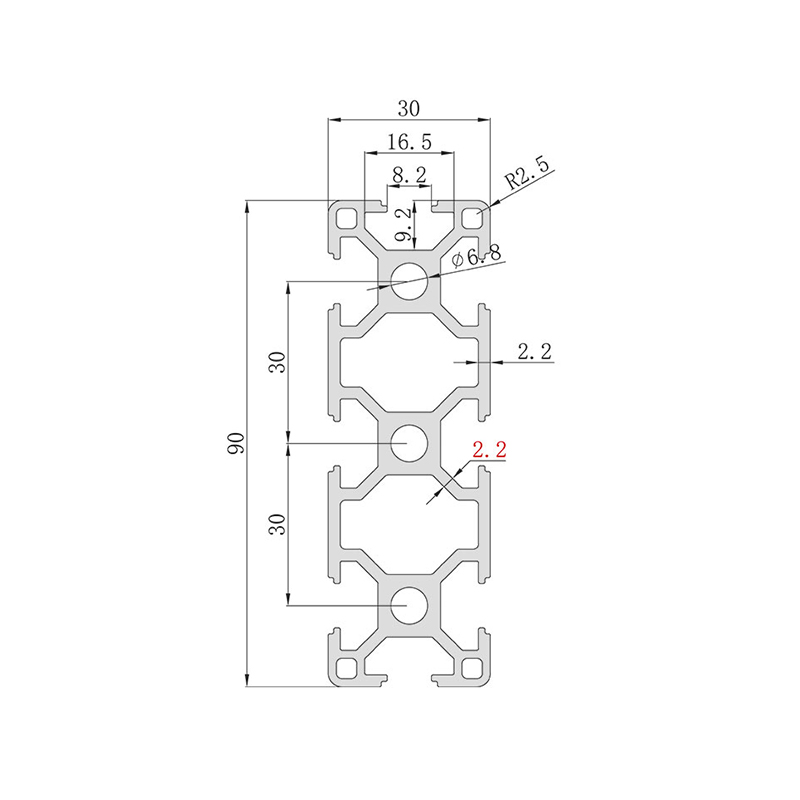

CAD Drawing Download
PREV：HS-8-3060L Lightweight 30*60 T-Slot Aluminum Profile, 1.4mm Wall Thickness, Φ7 Hole Diameter Silver Industrial AluminumNEXT：HS-8-30120 30*120 T-Slot Aluminum Profile, 8mm Slot Width, 2.0mm Wall Thickness Silver Industrial Aluminum
  • Specification
Model HS-8-3090
Cross-section dimensions 30mm*90mm
Unit weight 2.36kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 8.2mm
Slot depth 9.2mm
Hole diameter Φ6.8
Wall thickness 2.2mm
  • Product Parameters

Model:

OB3090

Wall Thickness:

2.2mm

Unit Mass:

2.48kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
