30 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 30 Series Aluminum Extrusion Profile / HS-8-30150 30*150 T-Slot Aluminum Profile, 8.2mm Slot Width, 2.1mm Wall Thickness Silver Industrial Aluminum

HS-8-30150 30*150 T-Slot Aluminum Profile, 8.2mm Slot Width, 2.1mm Wall Thickness Silver Industrial Aluminum

The HS-8-30150 industrial aluminum profile adopts an extra-large 30mm*150mm cross-sectional design, with a unit weight of 3.59kg/m, which is the product with the largest cross-section and the strongest load-bearing capacity in this series, specially designed for extra-heavy frames and extra-large load scenarios. Made of high-quality 6063-T5 aluminum alloy, it has excellent compression and deformation resistance after special processing, can bear extra-large loads for a long time, and has extremely strong structural stability. The surface is treated with anodizing, with a smooth silver appearance and strong metallic texture, with excellent corrosion resistance and wear resistance, which can adapt to various complex industrial environments. The profile adopts a standard T-slot design, with a slot width of 8.2mm and a slot depth of 9.2mm, fully compatible with various European standard aluminum profile accessories, enabling welding-free and modular rapid assembly, reducing construction difficulty. The 2.1mm wall thickness combined with Φ6.8 standard hole diameter ensures uniform force and precise assembly, with a standard length of 6.02m, supporting one-stop services such as precise cutting, CNC deep processing, frame design and assembly. Direct supply from the source factory, quality guaranteed, meeting the needs of extra-heavy scenarios.
Applications:  Suitable for the construction of extra-heavy automation equipment frames, large industrial frames, heavy material warehouse shelves, heavy workshop protective fences and extra-large load scenarios.

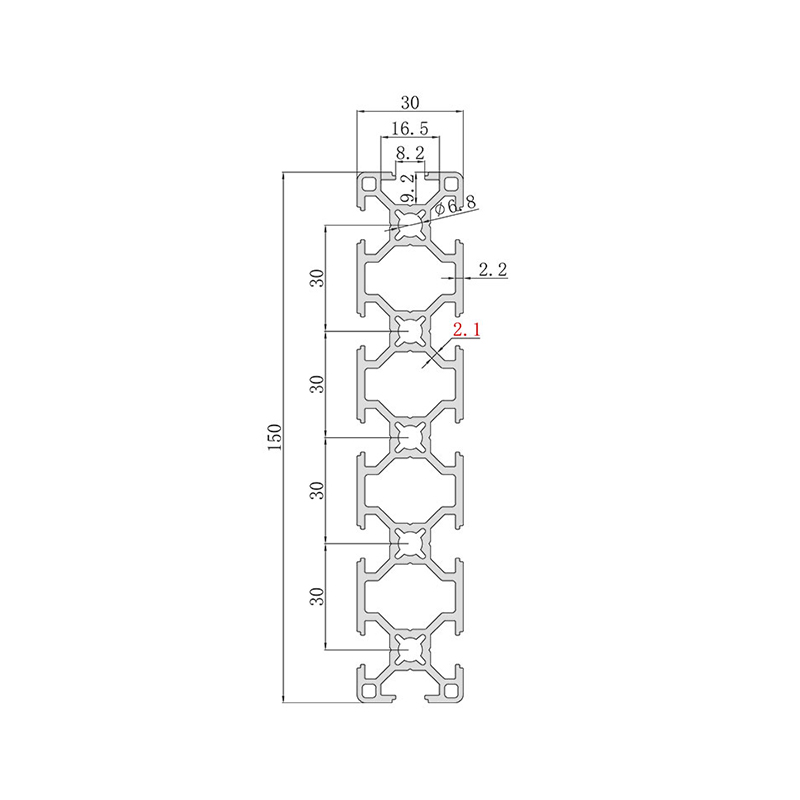

CAD Drawing Download
PREV：HS-8-30120 30*120 T-Slot Aluminum Profile, 8mm Slot Width, 2.0mm Wall Thickness Silver Industrial AluminumNEXT：HS-8-30150W Extra-Heavy-Duty T-Slot Aluminum Profile, 4mm Extra-Thick Wall Thickness, Φ12 Large Hole Diameter, 30*150mm Industrial Aluminum
  • Specification
Model HS-8-30150
Cross-section dimensions 30mm*150mm
Unit weight 3.59kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 8.2mm
Slot depth 9.2mm
Hole diameter Φ6.8
Wall thickness 2.1mm
  • Product Parameters

Model:

OB30150

Wall Thickness:

2.1mm

Unit Mass:

3.76kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
