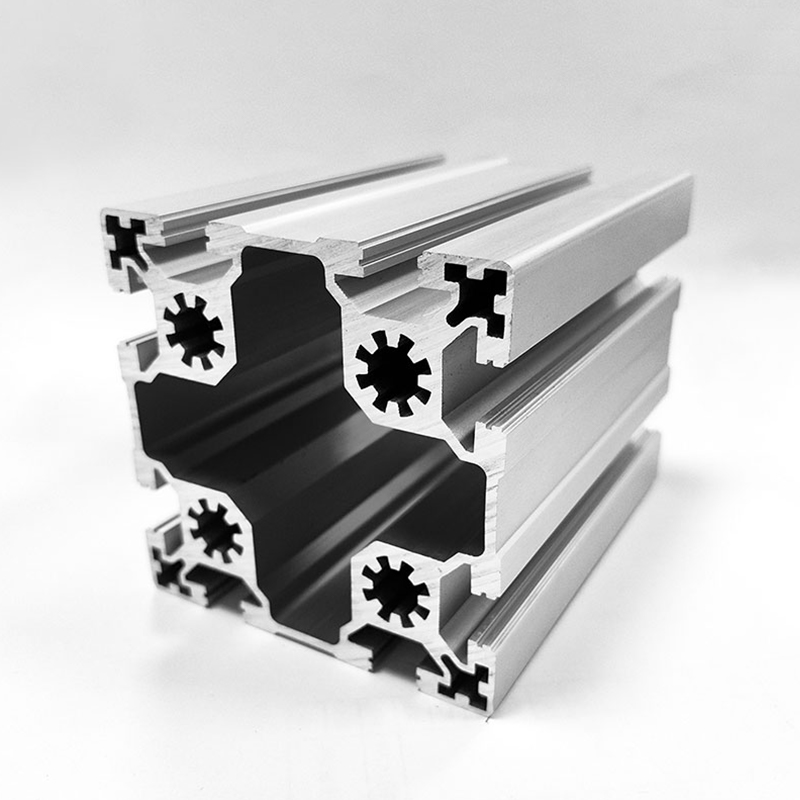

HS-10-9090W Extra Heavy-Duty 9090 series T-Slot Aluminum Extrusion Profile with 5.4mm Reinforced Wall Thickness for High-Load Industrial Framing

The HS-10-9090W is a premium, extra-heavy-duty aluminum extrusion engineered for industrial applications that demand maximum structural strength and superior stability. Featuring a robust 90mm x 90mm section size and a significantly reinforced 5.4mm wall thickness, this profile is designed to handle extreme loads with minimal deflection. It is manufactured from high-quality 6063-T5 aluminum alloy and features a professional silver anodized surface that provides long-lasting protection against corrosion and wear. This profile is designed with a 10.2mm T-slot width and a 12.4mm depth, ensuring full compatibility with a wide range of heavy-duty fasteners and accessories for forming complex 3D structures. A major advantage of the HS-10-9090W is its modular design, which does not require welding assembly, making it exceptionally easy to install, adjust, and reconfigure for your company's evolving needs.

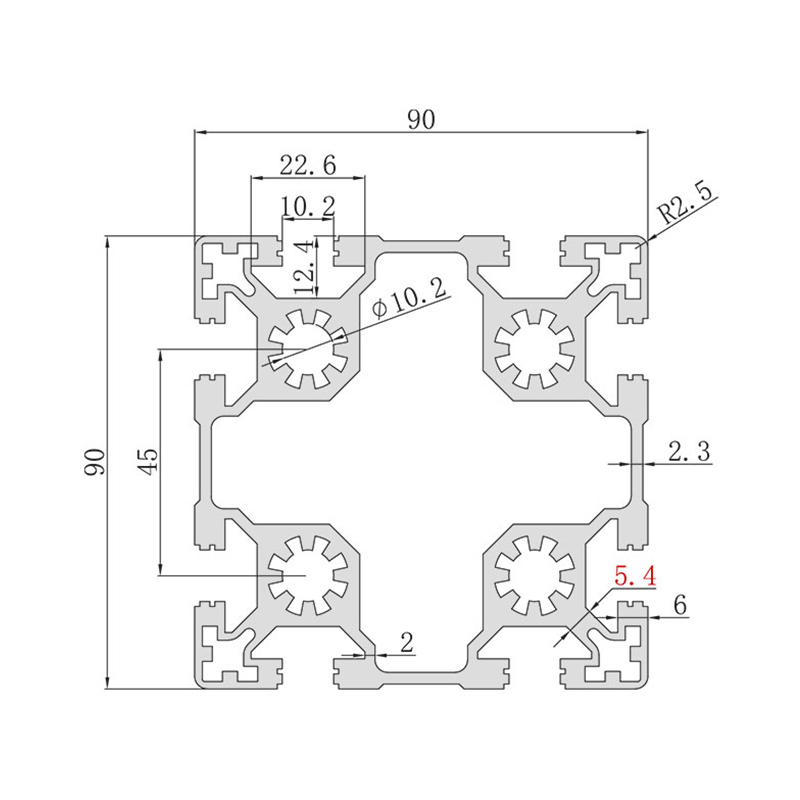

CAD Drawing Download
PREV：HS-10-9090 Heavy-Duty 9090 series T-Slot Aluminum Extrusion Profile with 4.5mm Wall Thickness for High-Strength Industrial FramingNEXT：No next article
  • Specification
Model Number HS-10-9090W
Section Size 90mm * 90mm
Unit Mass 6.23 kg/m
Surface Treatment Anodized
Color Silver
Material 6063-T5 Aluminum Alloy
Standard Length 6.02 m
Slot Type T-Slot
Slot Width 10.2 mm
Slot Depth 12.4 mm
Center Hole Diameter Φ10.2
Wall Thickness 5.4 mm
  • Product Parameters

Model:

OB9090W

Wall Thickness:

5.4mm

Unit Mass:

6.41kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
