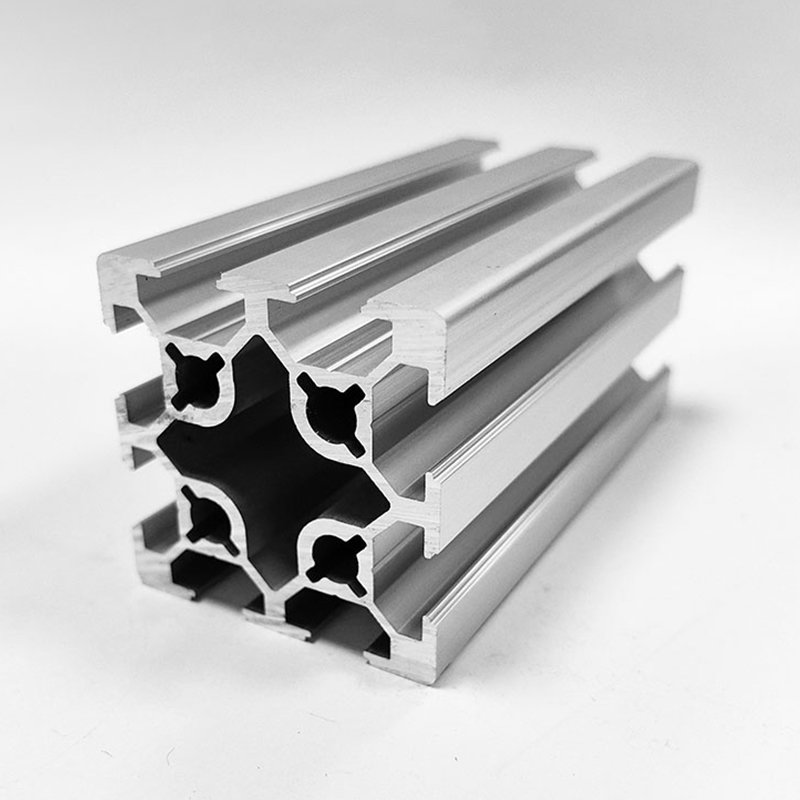

Focusing on lightweight design, it is made of high-quality 6063-T5 aluminum alloy, which is lightweight and has basic toughness. After strict anodizing treatment, the surface is delicate and shiny silver with a prominent metallic texture, which can meet the long-term use needs of light scenarios. The T-slot structure design is suitable for the adaptation of light connectors, with a reasonable slot width and regular slot body, modular rapid assembly, no need for welding, convenient construction, and no need for complex construction tools. Light in self-weight, suitable for scenarios with limited space and no heavy load, supporting simple deep processing services, direct supply from the source factory, excellent cost performance, and is the preferred model for light square frame construction.
 |

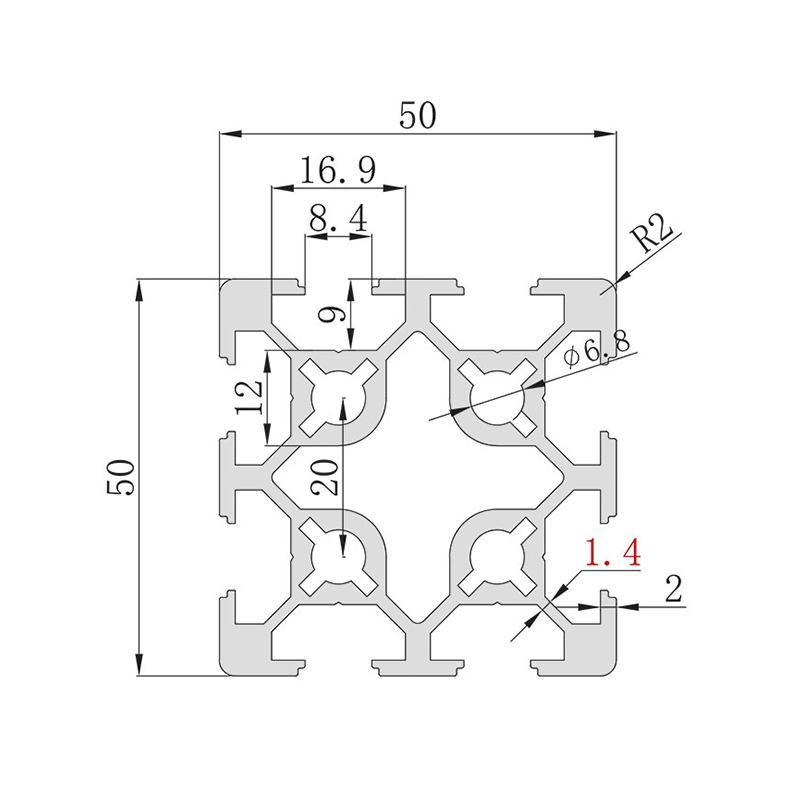

Model | HS-8-5050K |
| Cross-section dimensions | 50mm*50mm | |
| Unit weight | 2.24kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | T-type | |
| Slot width | 8.4mm | |
| Slot depth | 9mm | |
| Hole diameter | Φ6.8 | |
| Wall thickness | 1.4mm |
Model:
OB5050K
Wall Thickness:
1.4mm
Unit Mass:
2.35kg/m
