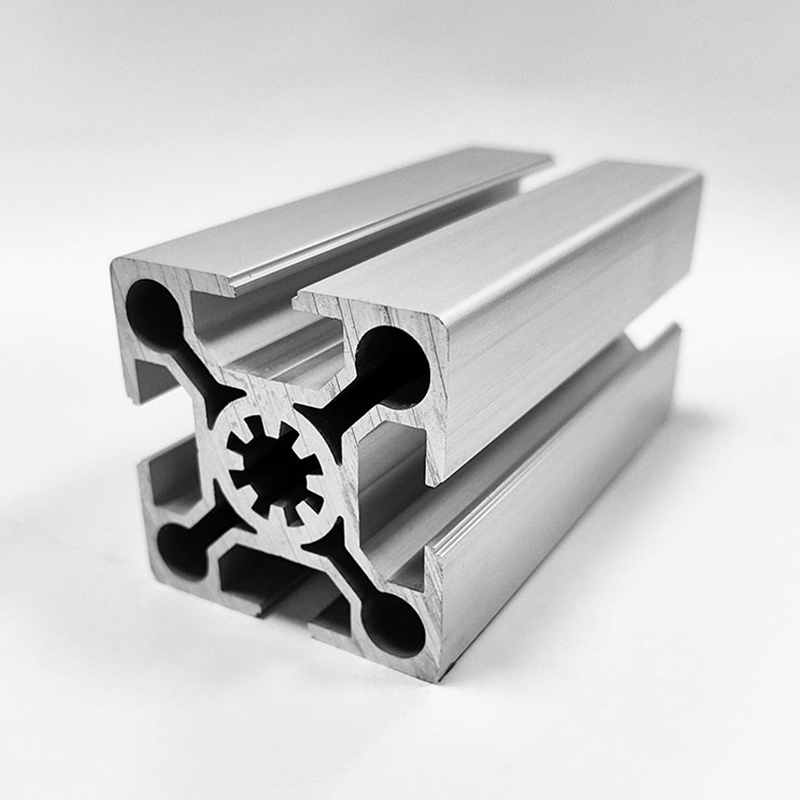

Made of high-quality 6063-T5 aluminum alloy, it has undergone strict anodizing treatment, with a delicate and uniform silver luster on the surface and a warm metallic texture, which has good corrosion resistance and wear resistance, and can be used stably in various conventional industrial and commercial scenarios for a long time. Suitable for T-slot structure, the slot width and depth design are suitable for conventional connector needs, enabling modular rapid assembly without welding, with precise assembly and uniform force, and convenient and efficient construction. The overall structure is balanced, the self-weight and load-bearing performance are reasonably matched, supporting basic deep processing services such as precision cutting and drilling, direct supply from the source factory, reliable quality, and it is a common choice for the construction of various medium and light square frames.
 |
Model | HS-8-5050 |

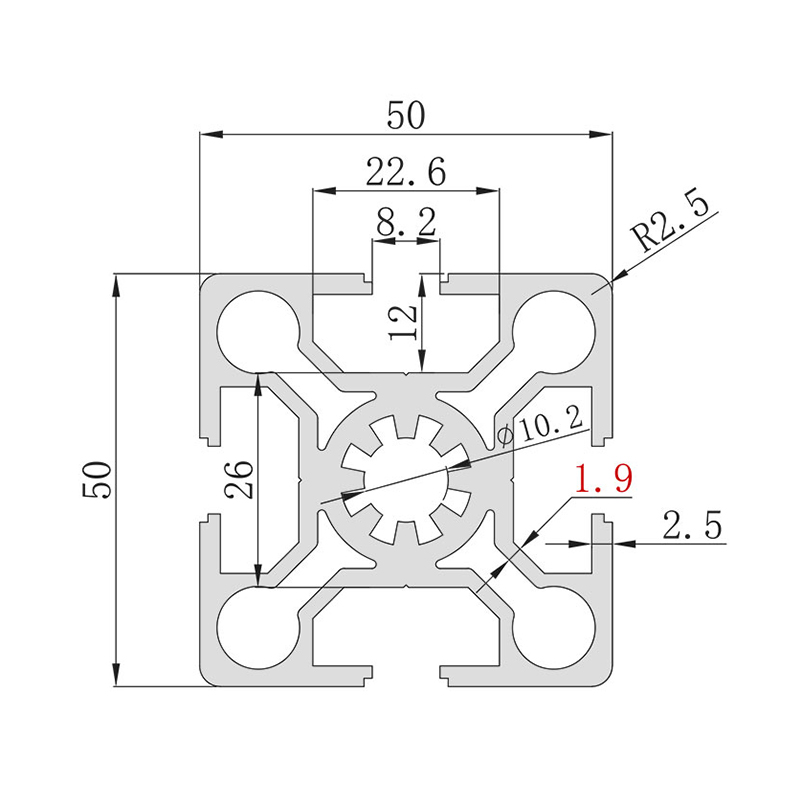

| Cross-section dimensions | 50mm*50mm | |
| Unit weight | 2.68kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | T-type | |
| Slot width | 8.2mm | |
| Slot depth | 12mm | |
| Hole diameter | Φ10.2mm | |
| Wall thickness | 1.9mm |
Model:
OB5050-8
Wall Thickness:
1.9mm
Unit Mass:
2.71kg/m
Huishuo Aluminum Industry is professional China HS-8-5050 Standard T-Slot Industrial Aluminum Profile, 50 Square Silver Universal Aluminum suppliers and HS-8-5050 Standard T-Slot Industrial Aluminum Profile, 50 Square Silver Universal Aluminum company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
