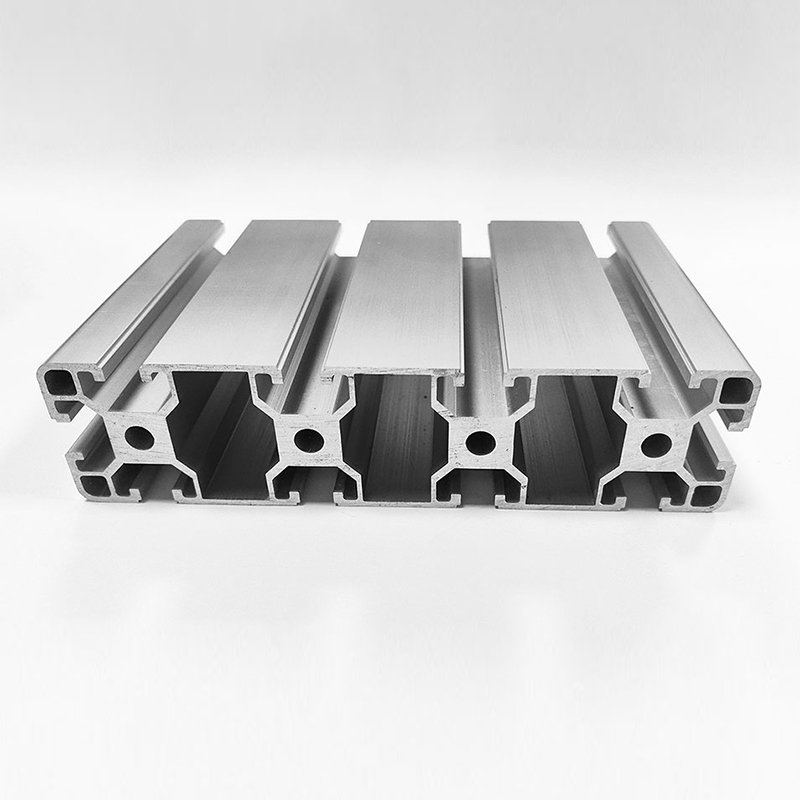

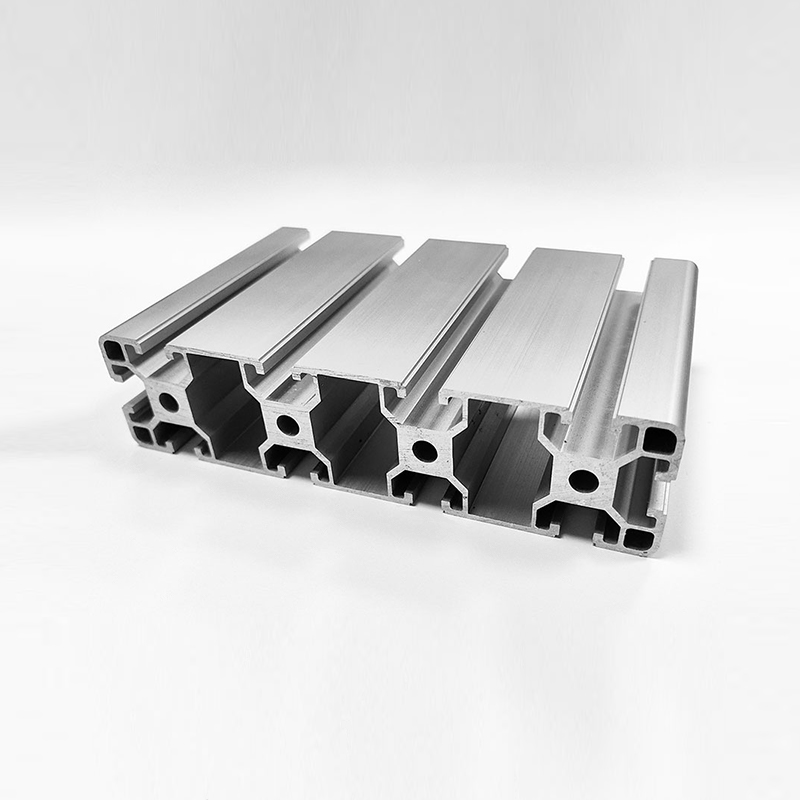

Adopting an extra-wide rectangular cross-sectional design, it has extremely high structural strength and excellent load-bearing performance, making it the core adaptation model for extra-heavy scenarios. Made of high-quality 6063-T5 aluminum alloy, after strict heat treatment and anodizing treatment, the surface is uniformly full silver with a strong metallic texture, which has excellent compression and deformation resistance, can bear extra-large loads for a long time, can adapt to various complex and harsh industrial environments, and has a long service life. It adopts a T-slot structure with a reasonable slot design, compatible with various heavy-duty European standard connectors, firm assembly, and strong stability. Modular assembly is convenient and efficient, greatly saving construction time. Supporting precision cutting, CNC deep processing, and frame customization services, direct supply from the source factory, quality guaranteed, suitable for the construction of extra-heavy scenarios such as large industrial frames and heavy equipment frames.
 |

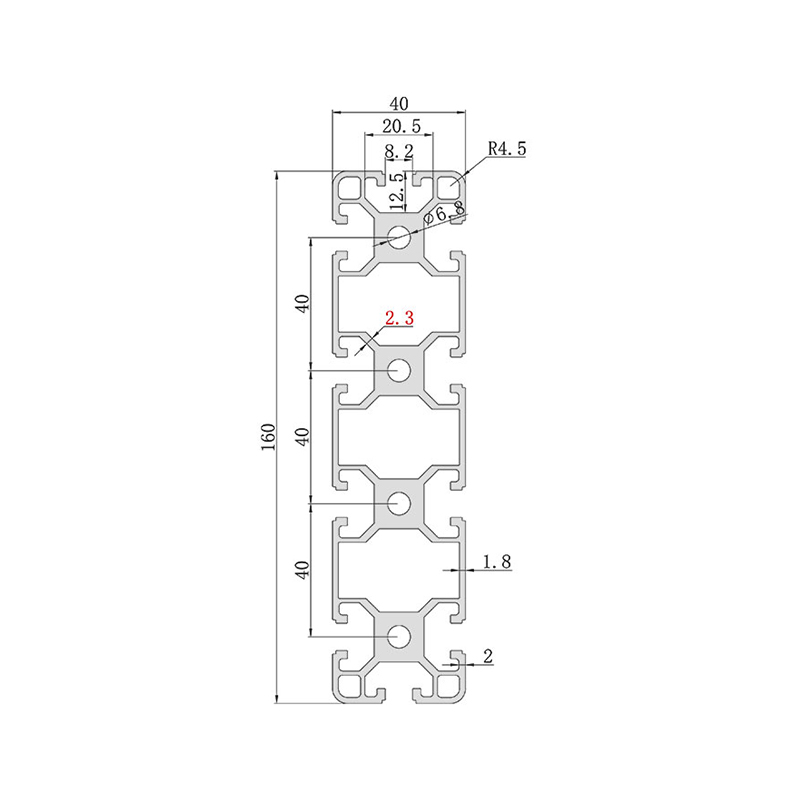

Model | HS-8-40160 |
| Cross-section dimensions | 40mm*160mm | |
| Unit weight | 4.98kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | T-type | |
| Slot width | 8.2mm | |
| Slot depth | 12.5mm | |
| Hole diameter | Φ6.8 | |
| Wall thickness | 2.3mm |
Model:
OB40160
Wall Thickness:
2.3mm
Unit Mass:
5.23kg/m
