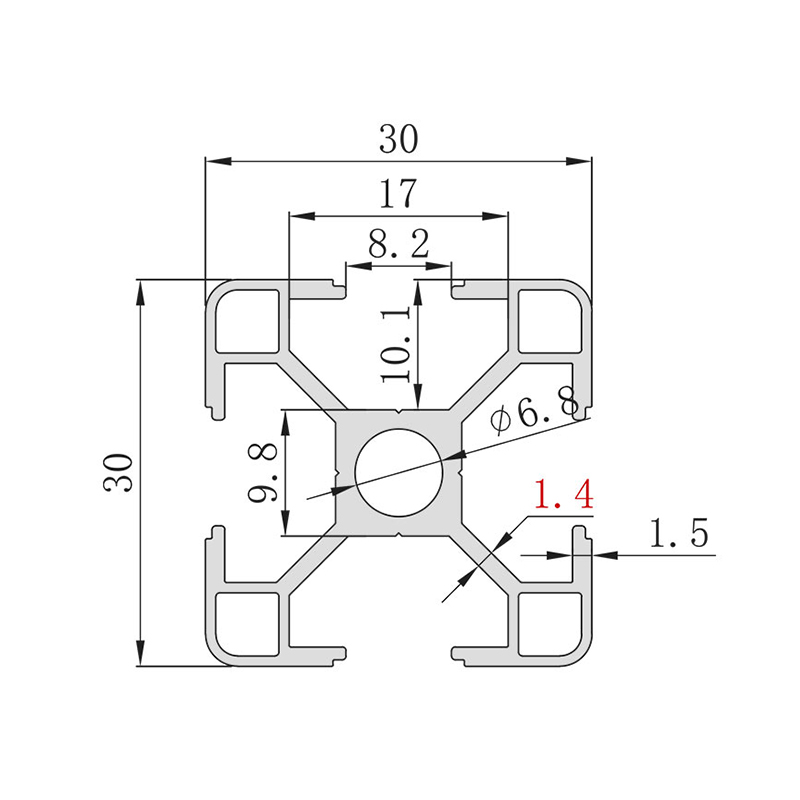

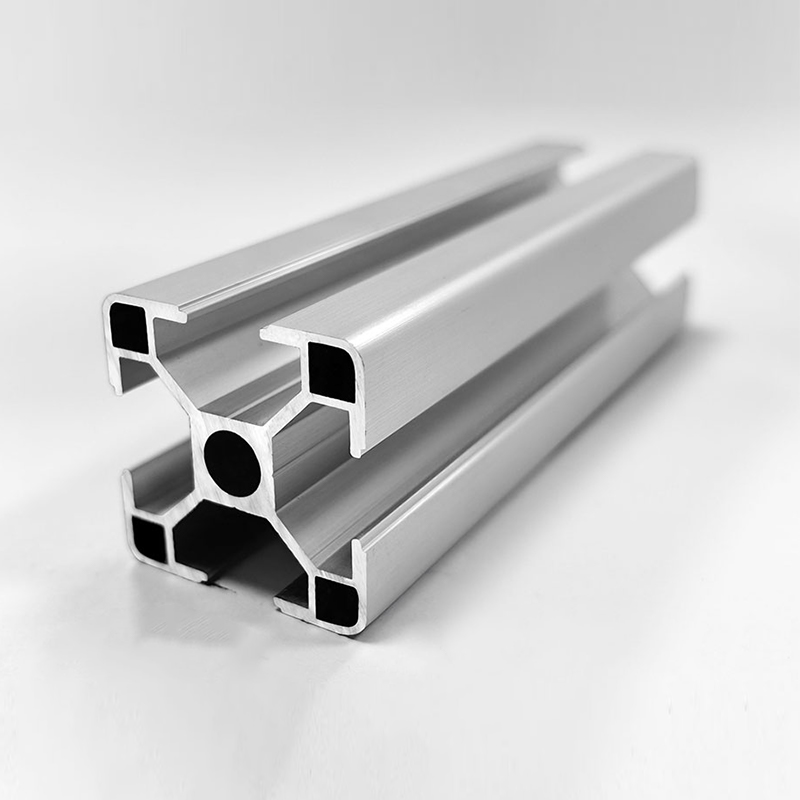

The HS-8-3030QL is a precision-engineered 30x30mm T-slot aluminum extrusion designed for high-efficiency structural applications. Utilizing high-purity 6063-T5 aluminum alloy, this profile achieves an impressive unit mass of only 0.58kg/m. The surface is finished with a high-grade anodized coating (available in silver or black), providing a professional appearance and long-term durability in demanding industrial environments. Featuring an 8.2mm slot width and 10.1mm depth, this profile is optimized for easy integration with standard T-nuts and connectors. Its 1.4mm wall thickness and Φ6.8mm center hole provide the perfect balance between structural integrity and weight savings. We leverage over 16 years of manufacturing experience to offer one-stop fabrication services, including precision cutting to 6.02m lengths, CNC machining, and full frame assembly.
Primary Applications: Ideal for constructing automation machinery frames, safety perimeter fencing, material handling racks, lightweight laboratory structures, and modular workstations
 |
Model Number | HS-8-3030QL |
| Section Size | 30mm * 30mm | |
| Unit Mass | 0.58 kg/m | |
| Surface Treatment | Anodized | |

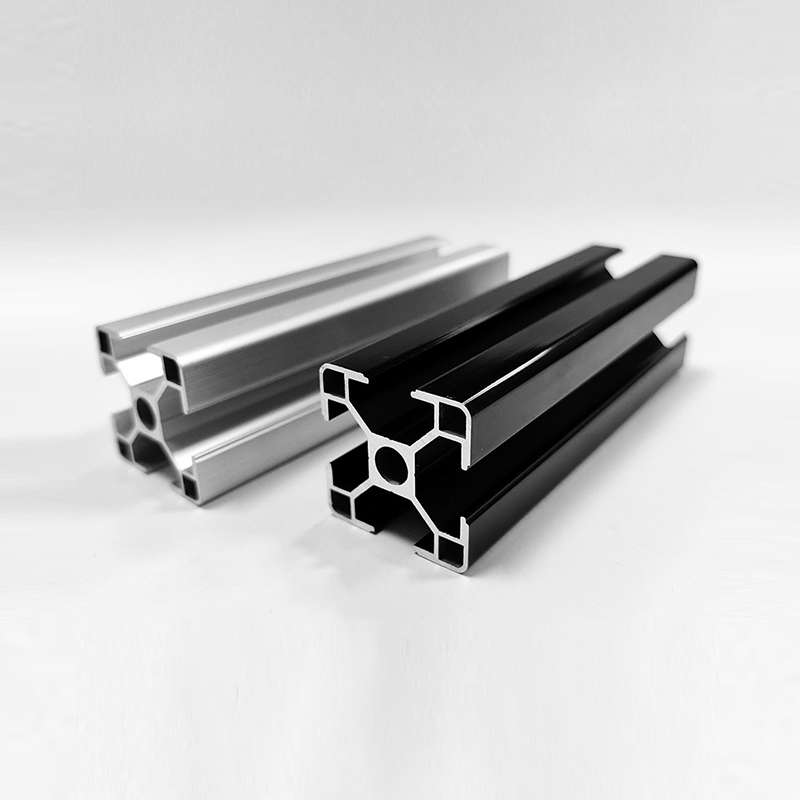

| Color | Silver or Black | |
| Material | 6063-T5 Aluminum Alloy | |
| Standard Length | 6.02 m | |
| Slot Type | T-Slot | |
| Slot Width | 8.2 mm | |
| Slot Depth | 10.1 mm | |
| Center Hole Diameter | Φ6.8 | |
| Wall Thickness | 1.4 mm |

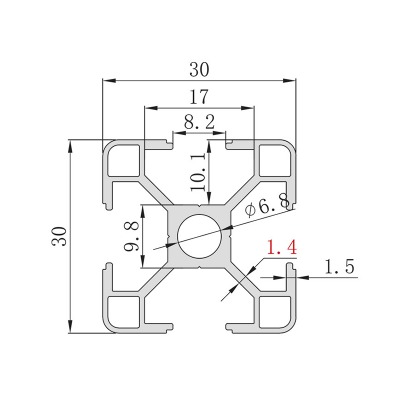

Model:
OB3030QL
Wall Thickness:
1.4mm
Unit Mass:
0.61kg/m
