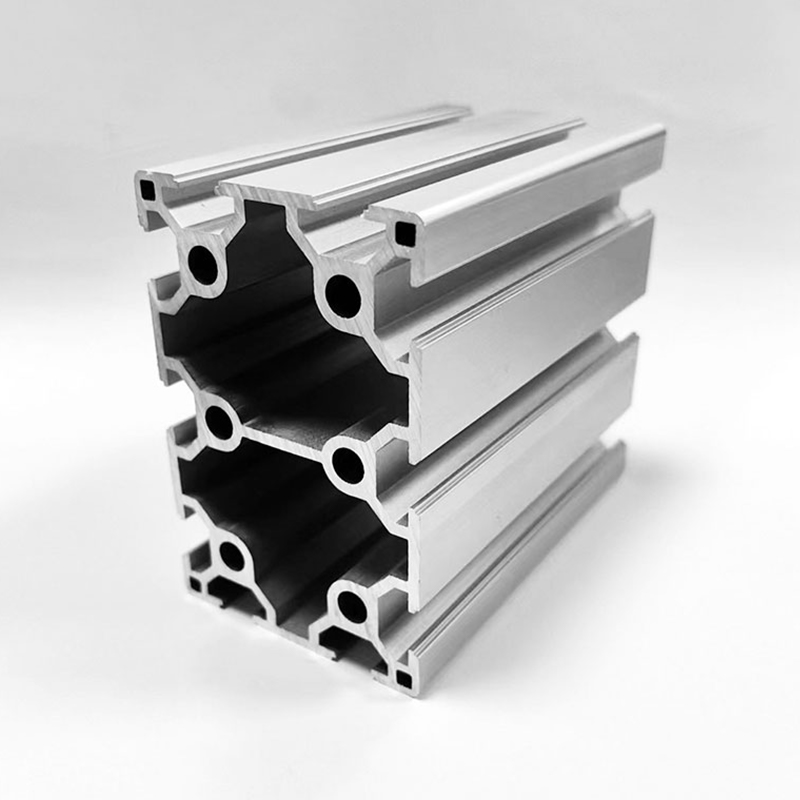

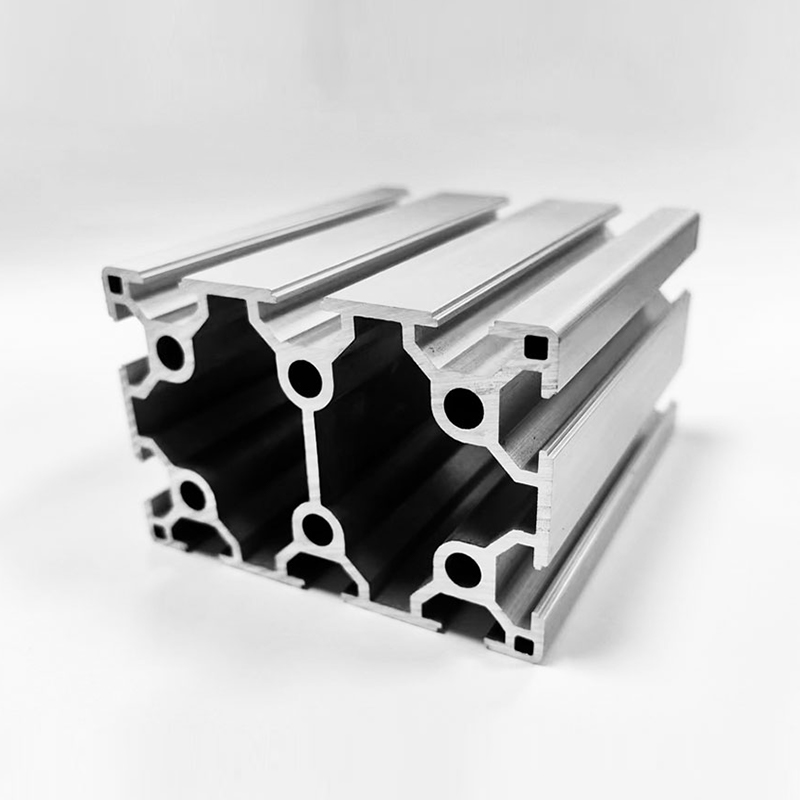

Made of high-quality 6063-T5 aluminum alloy, after strict anodizing treatment, it shows a delicate and uniform silver luster, full metallic texture, excellent corrosion resistance and mechanical properties, and can be used stably in various industrial scenarios for a long time without deformation. Adopting an 8.2mm wide T-slot structure with a depth of 9mm, it is suitable for various corresponding specifications of T-type connectors. Modular assembly is convenient and efficient, with no need for welding, greatly improving construction efficiency, and the Φ6.8mm hole diameter design meets the installation needs of medium-load scenarios. The 2.3mm wall thickness combined with the 60mm*90mm wide rectangular cross-section, with a unit mass of 3.71kg/m, has a solid structure, outstanding support performance, balanced self-weight and load-bearing, supporting precision cutting, CNC deep processing and other services, direct supply from the source factory, suitable for the construction of various medium-load wide frames.
 |

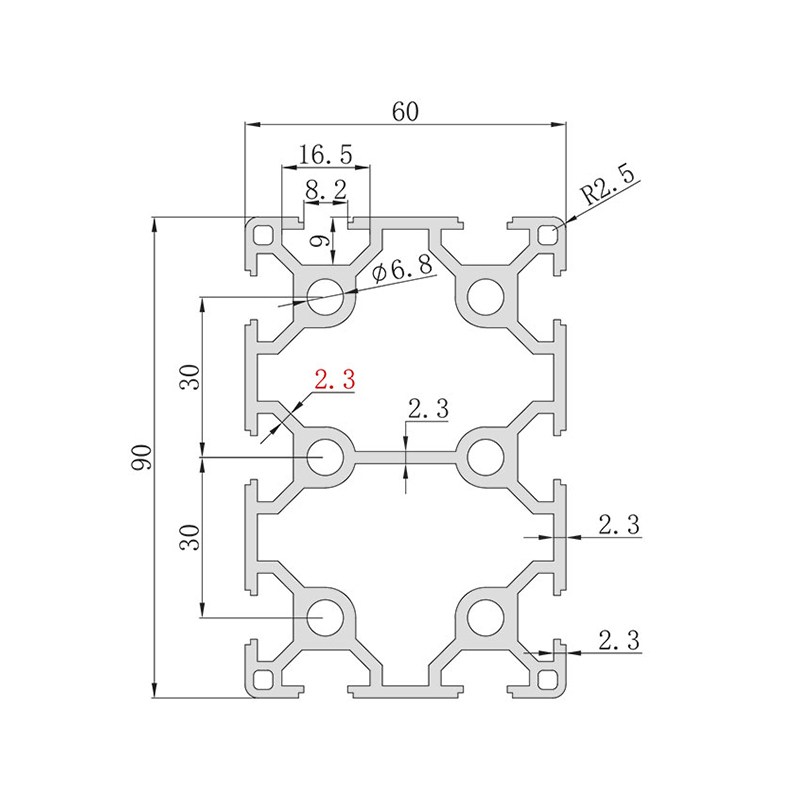

Model | HS-8-6090 |
| Cross-section dimensions | 60mm*90mm | |
| Unit weight | 3.71kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | T-type | |
| Slot width | 8.2mm | |
| Slot depth | 9mm | |
| Hole diameter | Φ6.8 | |
| Wall thickness | 2.3mm |
Model:
OB6090
Wall Thickness:
2.3mm
Unit Mass:
3.82kg/m
Huishuo Aluminum Industry is professional China HS-8-6090 Wide T-Slot Industrial Aluminum Profile, 60*90 Silver Medium-Load Aluminum suppliers and HS-8-6090 Wide T-Slot Industrial Aluminum Profile, 60*90 Silver Medium-Load Aluminum company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
