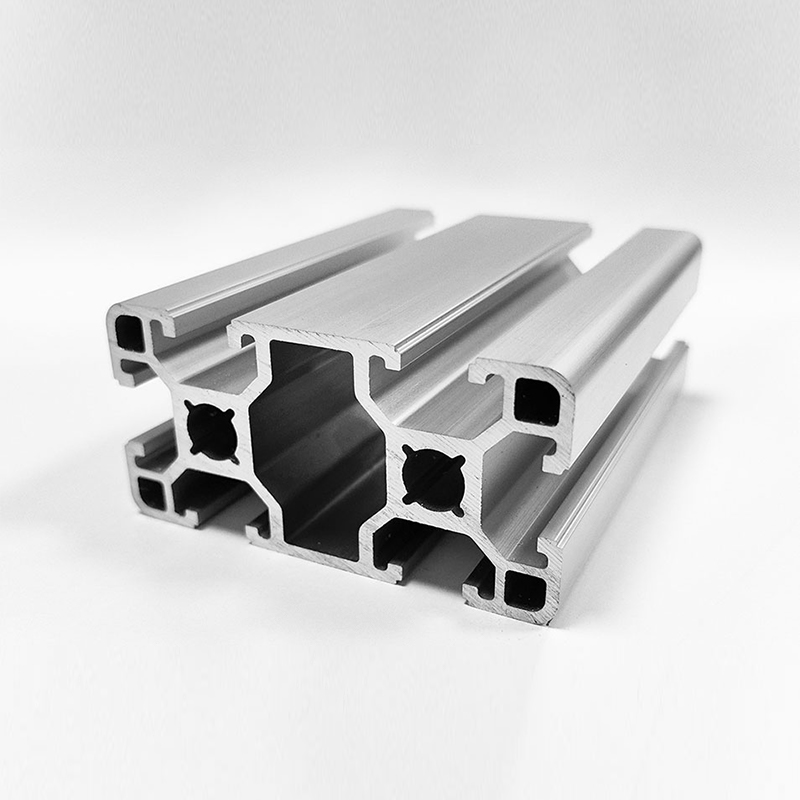

Adopting a wide rectangular cross-sectional design, the structure is solid and stable, with excellent load-bearing performance, suitable for various medium and heavy-frame construction needs. Made of high-quality 6063-T5 aluminum alloy, it has undergone strict anodizing treatment, with a delicate and uniform silver luster on the surface and a full metallic texture, which has excellent corrosion resistance and wear resistance, and can be used stably in various industrial environments for a long time. It adopts a large slot width T-slot structure with a reasonable slot design, compatible with various corresponding specifications of connectors, enabling modular rapid assembly without welding, greatly improving construction efficiency, with precise assembly and uniform force. Supporting deep processing services such as precision cutting and drilling, direct supply from the source factory, reliable quality, balancing practicality and adaptability, and improving assembly flexibility with the large slot width design to adapt to various complex installation needs.
 |

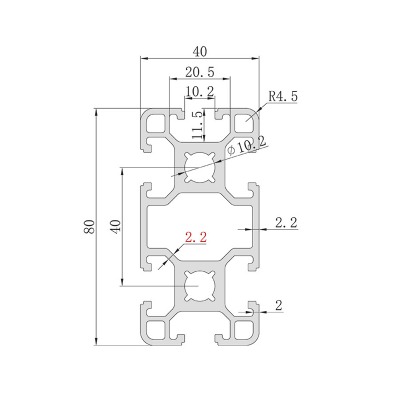

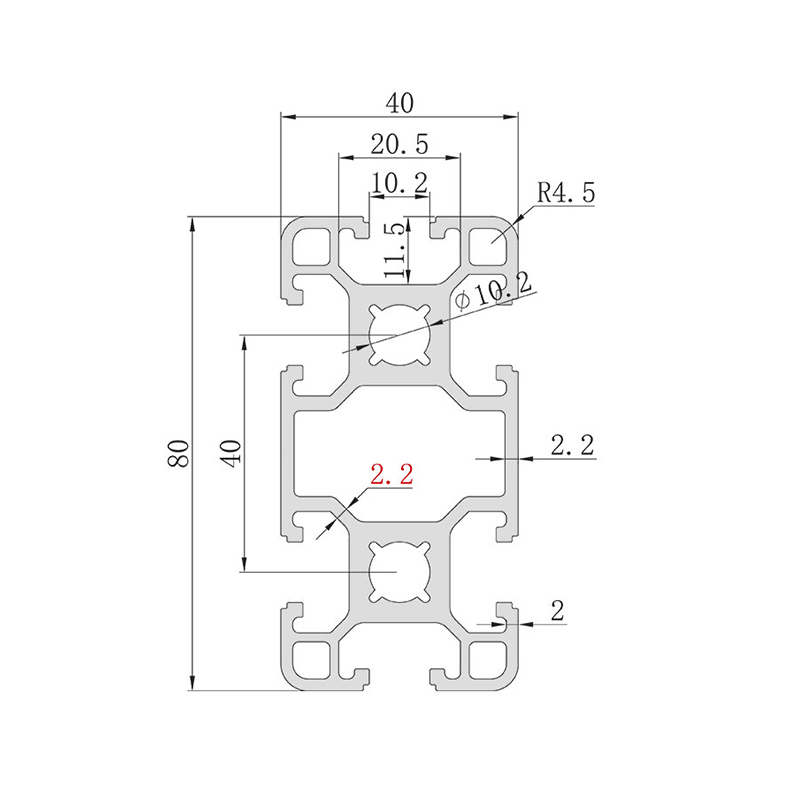

Model | HS-10-4080 |
| Cross-section dimensions | 40mm*80mm | |
| Unit weight | 2.85kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | T-type | |
| Slot width | 10.2mm | |
| Slot depth | 11.5mm | |
| Hole diameter | Φ10.2mm | |
| Wall thickness | 2.2mm |
Model:
OB4080-10
Wall Thickness:
2.2mm
Unit Mass:
2.98kg/m
Huishuo Aluminum Industry is professional China HS-10-4080 Large Slot Width T-Type Industrial Aluminum Profile, Anodized Silver Load-Bearing Aluminum suppliers and HS-10-4080 Large Slot Width T-Type Industrial Aluminum Profile, Anodized Silver Load-Bearing Aluminum company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
