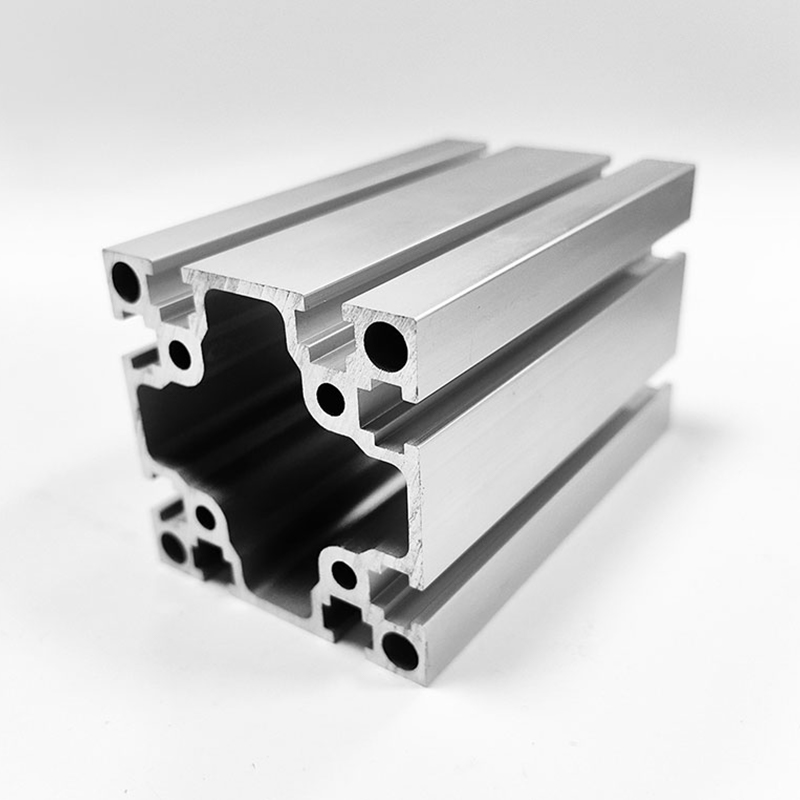

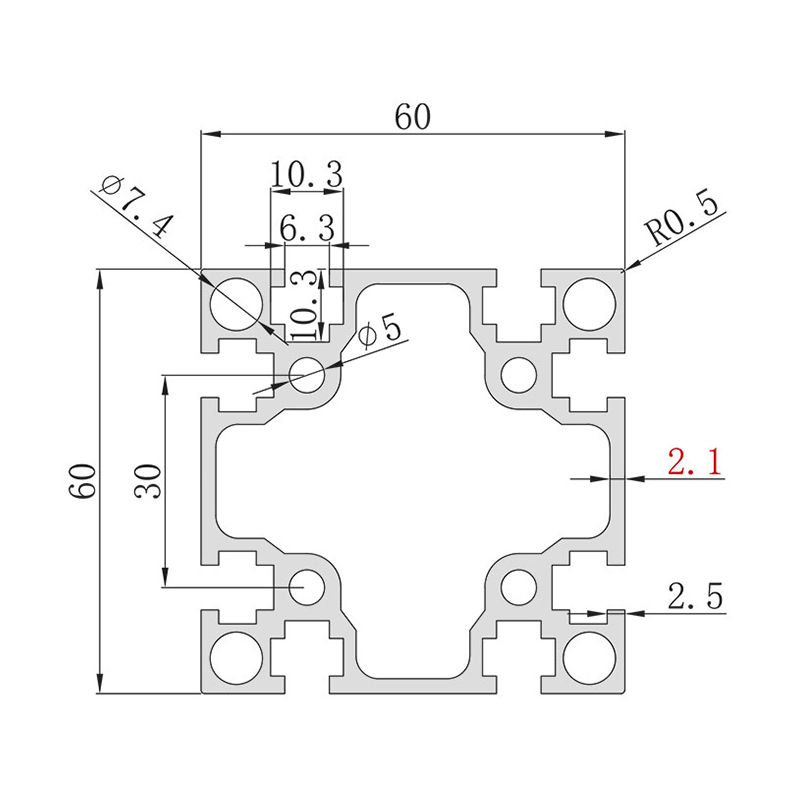

Using 6063-T5 aluminum alloy as the base material, it is tough and has good oxidation resistance. After a strict anodizing process treatment, the surface is uniformly delicate silver, not easy to fade or wear, and can adapt to the long-term use of various industrial environments. Different from the conventional T-slot, this product adopts a 6.3mm wide square slot structure with a depth of 10.3mm. The national standard square slot design has a stronger locking force and more prominent static load-bearing performance, suitable for special square connectors, firm assembly and not easy to lose, and modular assembly can be completed without complex construction tools. The 2.1mm wall thickness combined with the 60mm*60mm square cross-section, with a unit mass of 2.78kg/m, has a solid and stable structure, supports a variety of deep processing services, direct supply from the source factory, suitable for the construction of fixed frames with certain requirements for locking and load-bearing.
 |
Model | HS-6-6060G |
| Cross-section dimensions | 60mm*60mm | |
| Unit weight | 2.78kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | Square | |
| Slot width | 6.3mm | |
| Slot depth | 10.3mm | |
| Wall thickness | 2.1mm |
Model:
GB6060
Wall Thickness:
2.1mm
Unit Mass:
2.91kg/m
Huishuo Aluminum Industry is professional China HS-6-6060G Square-Slot National Standard Industrial Aluminum Profile, 60 Square Silver Strong Locking Aluminum suppliers and HS-6-6060G Square-Slot National Standard Industrial Aluminum Profile, 60 Square Silver Strong Locking Aluminum company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
