Our 40 series aluminum extrusion profile stands as the benchmark for industrial automation, providing the heavy-duty support necessary for robotic machine bases and large-scale assembly lines. Engineered from high-purity 6063-T5 aluminum, this series boasts an exceptional moment of inertia to resist bending and twisting under significant static and dynamic loads. By offering expert engineering selection advice, we help you leverage the 40 series' massive ecosystem of standardized accessories to create a truly flexible and future-proof production environment.
Huishuo Aluminum Industry is professional China 40 Series Aluminum Extrusion Profile manufacturers and 40 Series Aluminum Extrusion Profile factory, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality 40 Series Aluminum Extrusion Profile and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
Two purchase orders for the same 4040 T-slot profile can specify different metals: one buyer writes 6063-T5, another insists on 6061-T6, and the gap between the two quotes often reaches 10 to 20 percent. That difference is not paperwork. Among aluminum alloy types, the grade yo...
READ MOREA purchasing engineer who orders forty sticks of 6-meter T-slot profile without checking aluminum density in lb/in3 usually finds out at the loading dock, when the pallet weighs far more than the quote predicted and the freight class changes on the spot. The number that prevent...
READ MOREWhen a machine builder asks about the melting point of aluminum, they are usually not planning to melt anything. They are checking a weldment drawing, specifying a die-cast housing, or confirming that an extruded profile frame can sit near a heat source. The answer is simple: pu...
READ MOREChoosing the right stock aluminum extrusion profiles comes down to matching profile geometry, alloy, and finish to the real mechanical and environmental demands of your project. Engineers, fabricators, and procurement teams rely on these pre-designed sections to skip custom die ...
READ MORE40 Series Aluminum Extrusion Profile – a 40mm x 40mm square profile with T-slots, widely used for machine frames, workstations, conveyors, and automation structures. This category offers multiple variants differing in wall thickness, slot width, and hole pattern to match load and cost requirements.
The 40 mm cross-section provides a balance of stiffness and weight. It is the most common size for medium-duty automation frames, robot cells, and assembly lines. A 40 Series Aluminum Extrusion Profile supplier typically offers profiles extruded from 6063-T5 alloy, with anodized or dual-color finishes. The ecosystem of compatible connectors, fasteners, and accessories is mature, enabling rapid assembly and reconfiguration.
When selecting a 40 series profile, focus on wall thickness, slot width, and hole diameter. Thicker walls increase load capacity but add weight and cost. Slot width determines which T-nuts and bolts fit. The table below compares common variants from the Industrial Aluminum Extrusion Profiles range.
| Model | Wall Thickness (mm) | Slot Width (mm) | Hole Diameter (mm) | Typical Application |
|---|---|---|---|---|
| HS-8-4040F | 2.0 | 8.2 | 14 deep slot | Light-duty frames, enclosures |
| HS-8-4040C | 2.0 | 8.2 | 14 deep slot | Universal automation frames |
| HS-8-4040B | 2.5 | 8.2 | – | Load-bearing supports |
| HS-8-4040D | 3.2 | 8.2 | No hole | High-strength machine bases |
| HS-8-4040W | 4.5 | 8.2 | Φ6.7 | Extra-heavy-duty structures |
| HS-8-4040BA | 2.0 | 8.5 | – | Wide-slot for larger T-nuts |

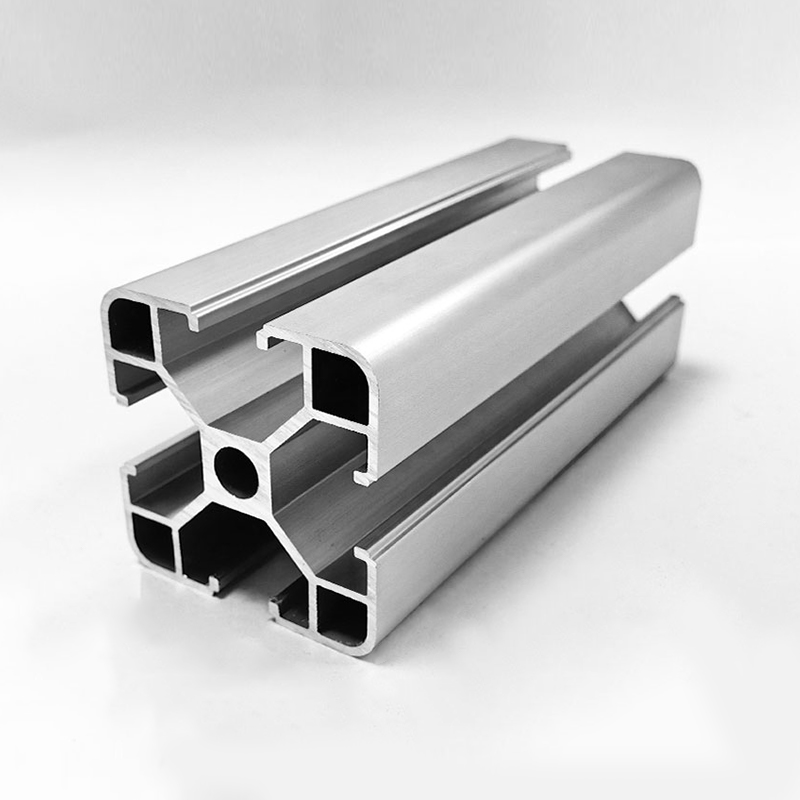

For a robot cell base, select a profile with wall thickness ≥3.0 mm (e.g., HS-8-4040D or HS-8-4040W) to minimize deflection under dynamic loads. For cleanroom partitions or light-duty workstations, the economical 2.0 mm wall variant (HS-8-4040F) is sufficient. If you need to route cables through the profile, choose a variant with a central hole (e.g., HS-8-4040W with Φ6.7 hole).
Slot width compatibility is critical. Most 40 series profiles use an 8.2 mm slot, which accepts M6 or M8 T-nuts. The HS-8-4040BA has an 8.5 mm slot for wider T-nuts. Verify that your chosen connectors and fasteners match the slot geometry. The Aluminium Profile Accessories category includes compatible T-nuts, brackets, and corner connectors.
Standard finish is silver anodized (AA10-15). Dual-color profiles (e.g., HS-8-4040CA) have a black slot for aesthetic contrast. For outdoor or corrosive environments, specify anodizing thickness ≥15 μm or powder coating. The factory offers anodizing, electrophoresis, and spraying lines, as shown on the Factory Tour page.
If standard 40 series profiles do not meet your cross-section or length requirements, the manufacturer provides Custom Mold Making for non-standard shapes. After extrusion, profiles can be cut, drilled, tapped, and milled using CNC Aluminum Processing with tolerance down to 0.01 mm. Specify hole positions, thread depths, and chamfer requirements in your RFQ.
What is the difference between 40 series and 45 series profiles?
40 series has a 40 mm cross-section, while 45 series is 45 mm. 45 series offers higher load capacity but is heavier. Choose 40 series for medium-duty frames and 45 series for heavier spans. See 45 Series Aluminum Extrusion Profile.
Can 40 series profiles be used outdoors?
Yes, with proper surface treatment. Specify anodizing thickness ≥15 μm or powder coating for corrosion resistance. Standard silver anodized profiles are suitable for indoor use only.
What accessories are compatible with 40 series profiles?
Standard M6 and M8 T-nuts, corner brackets, angle connectors, and slot covers. The Aluminium Profile Connectors category lists compatible parts.
What is the maximum length available for 40 series profiles?
Standard extrusion length is 6000 mm. Custom lengths can be cut to your specification. For longer spans, consider joining profiles with splice connectors.
How do I verify the load capacity of a 40 series profile?
Request the moment of inertia (Ix, Iy) and section modulus from the supplier. Use these values in beam deflection formulas for your specific span and load. The manufacturer can provide engineering data for each model.
Do you offer custom colors or finishes?
Yes, custom anodizing colors and powder coating (RAL colors) are available. Minimum order quantities may apply. Contact the sales team with your color code.
